Job #5878

starting weight a whopping 23.26#, with water sloshing about in the middle

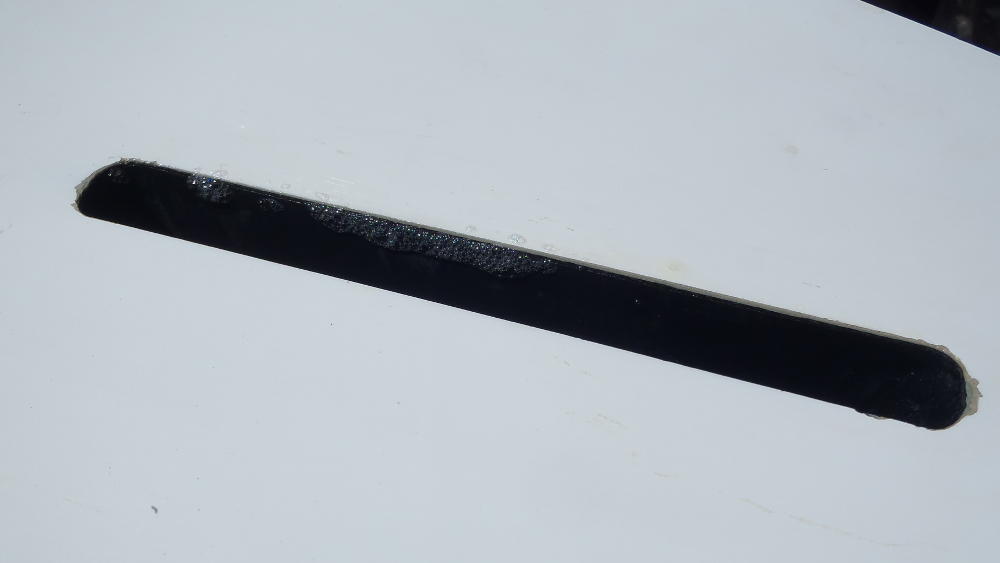

when pressurized, air bubbles from the interface between fin box and bottom skin; Goretex vent is found punctured and leaking

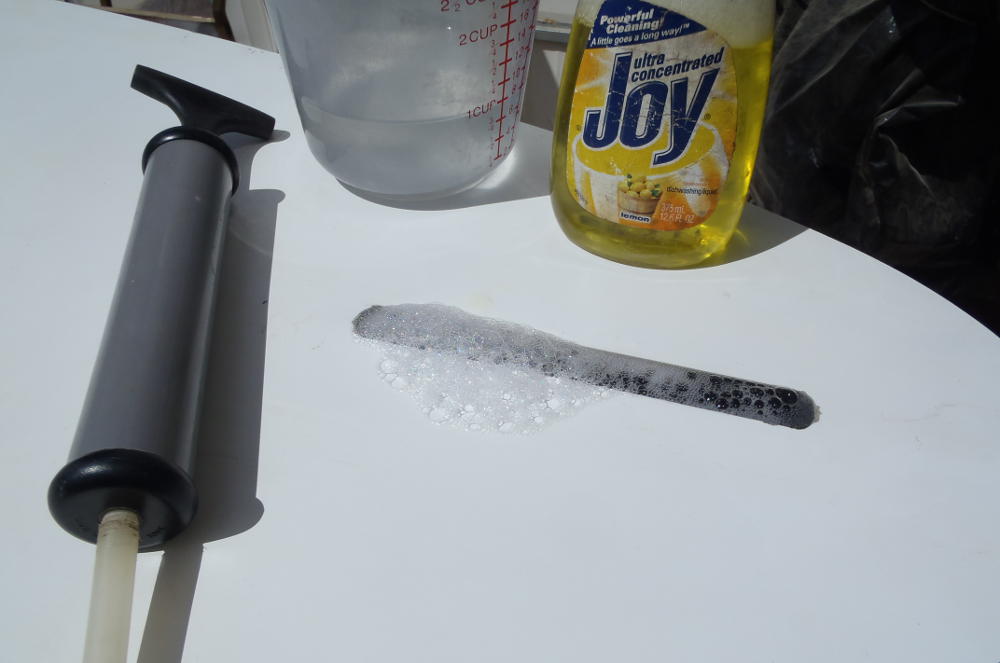

with fin screw holes taped off, the fin box is filled with soapy water and the board again pressurized. Bubbles emerge only from the fin box/bottom skin interface, not from the suspicious router marks on the inside of the fin box

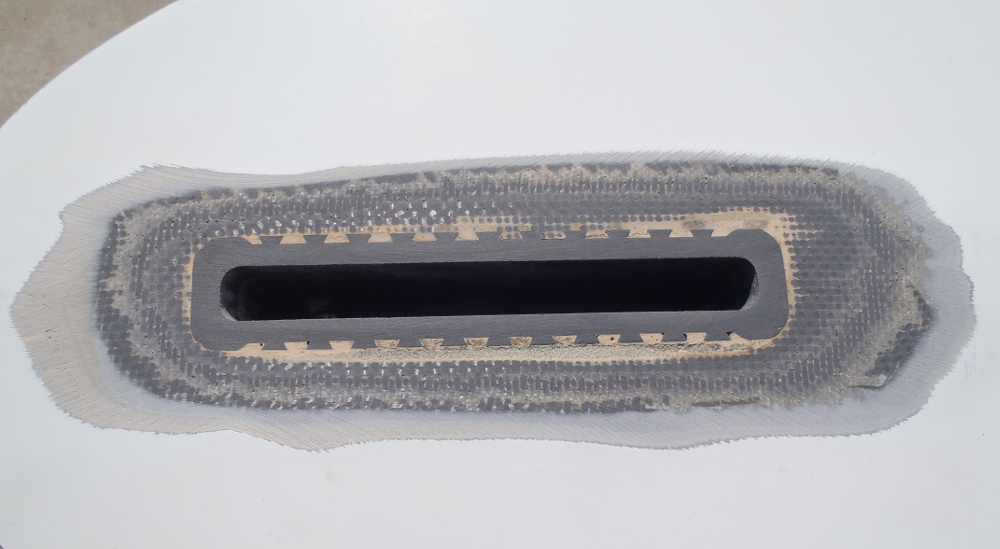

bottom skin ground off, ready for evacuation

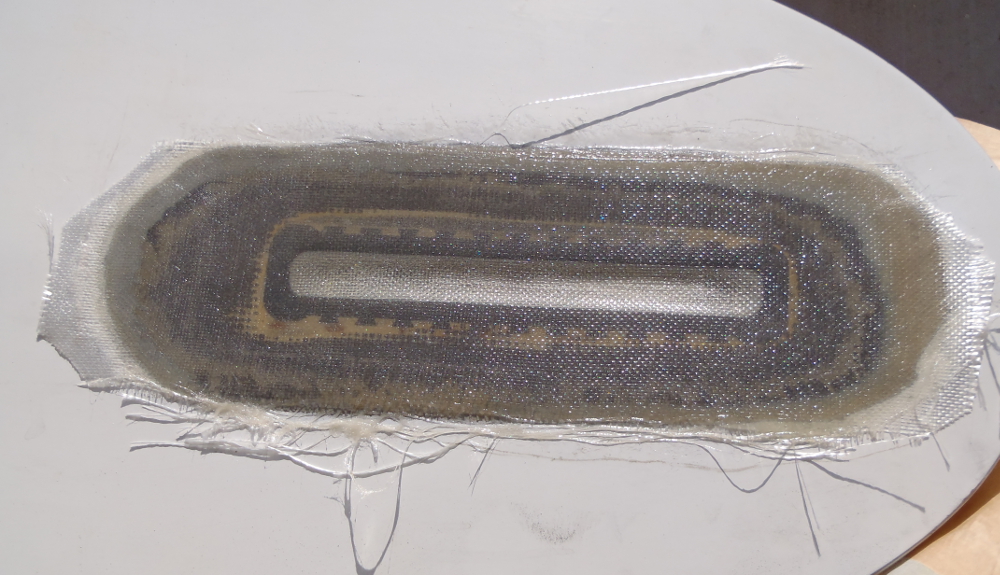

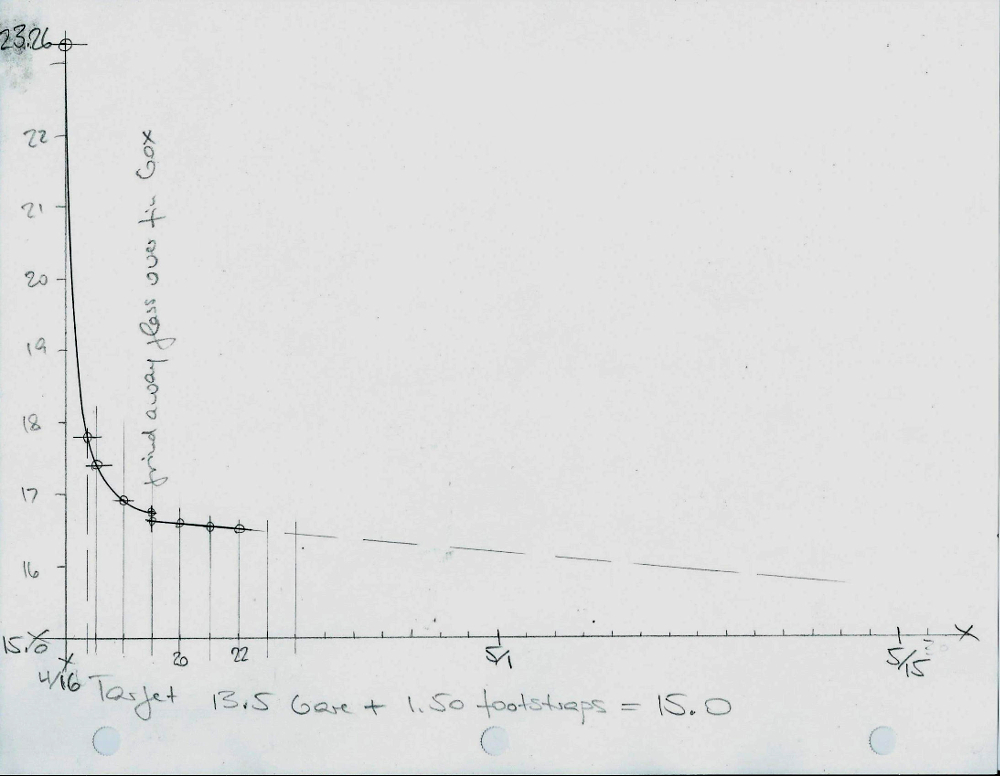

after extracting almost 7# of water, the new bottom skin is laminated

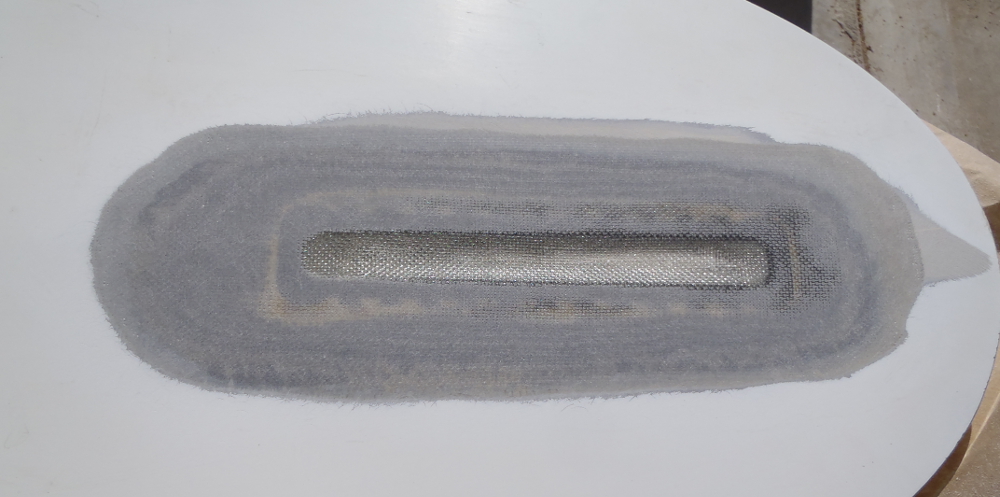

and ground flush

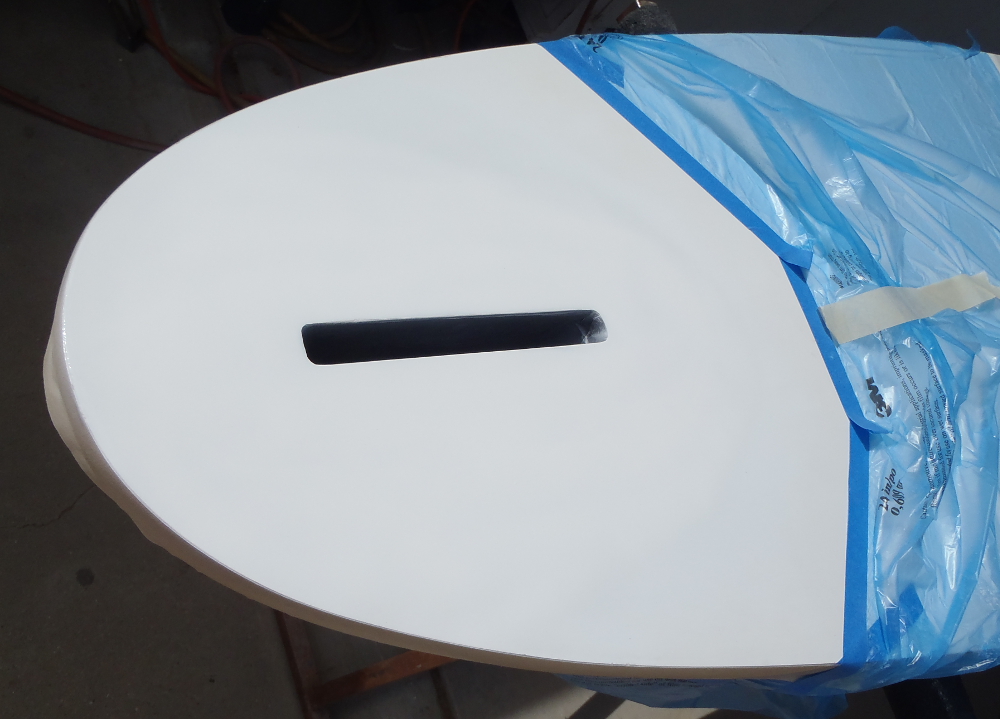

filler, then primer applied, ready for LP topcoat
Goretex vent fixture cut in preparation for extraction

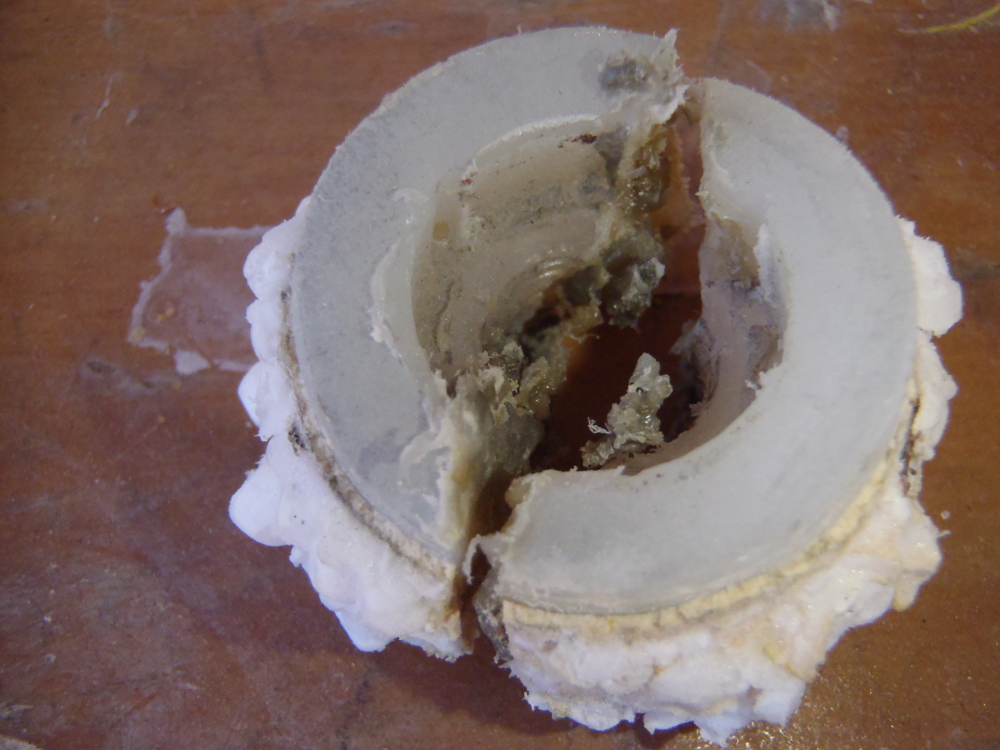

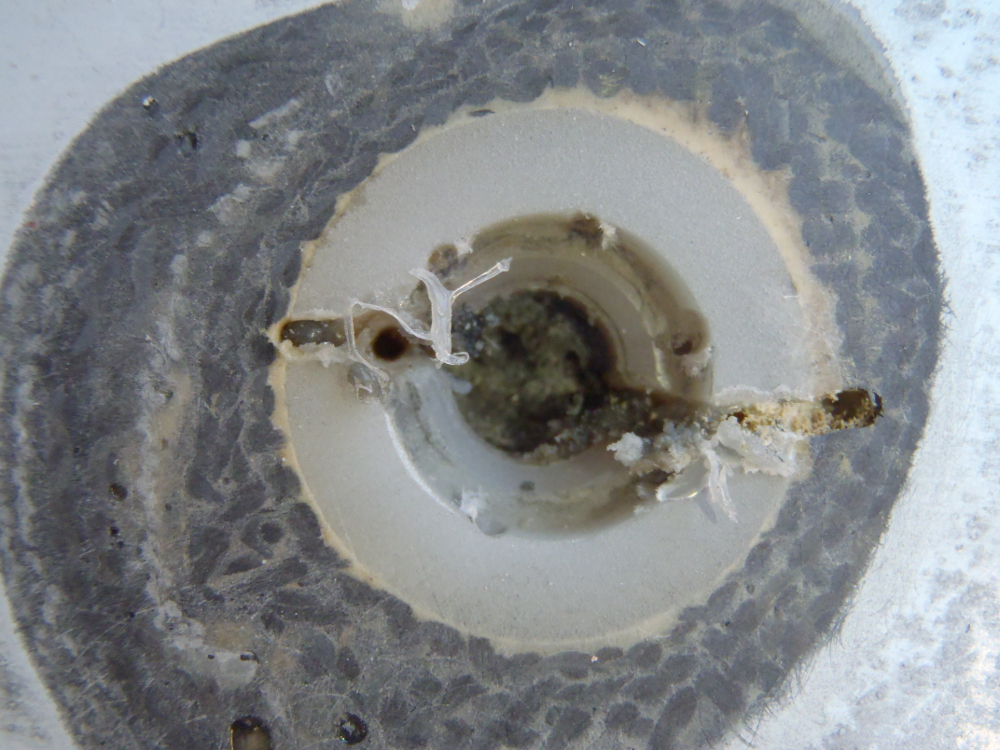

it comes out relatively clean

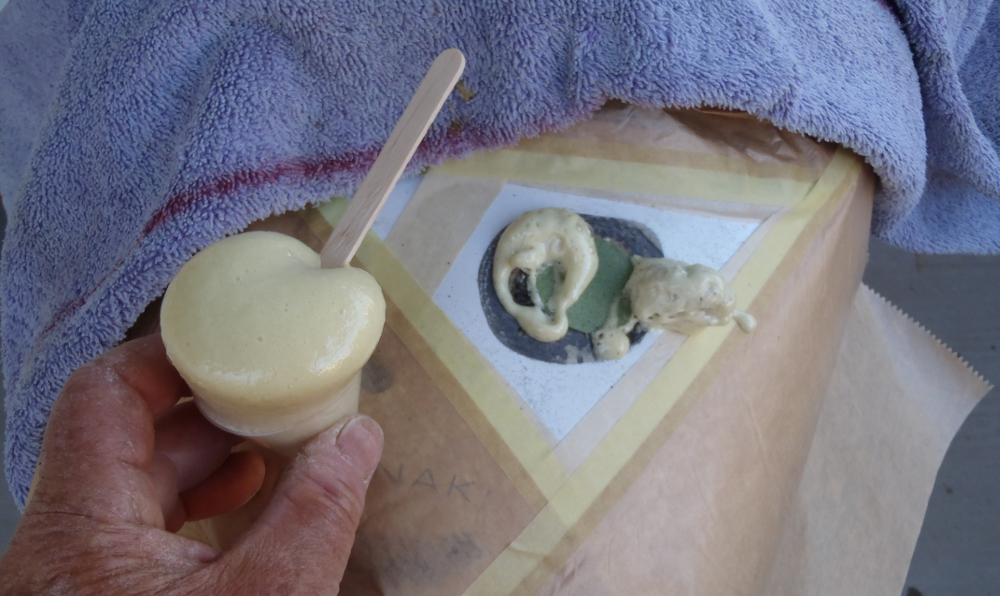

the substantial cavity is foamed out with 2-part Urethane, with a 1/2" Divinycell "lid" to support a "proper" vent fixture

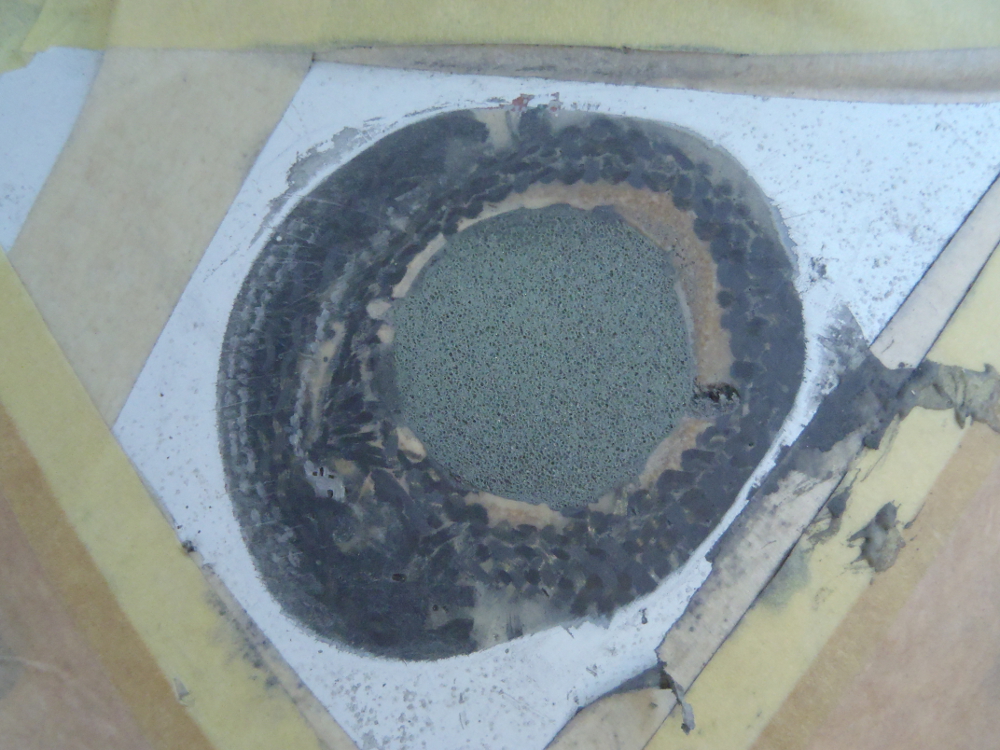

bevel-ground and ready for outer skin

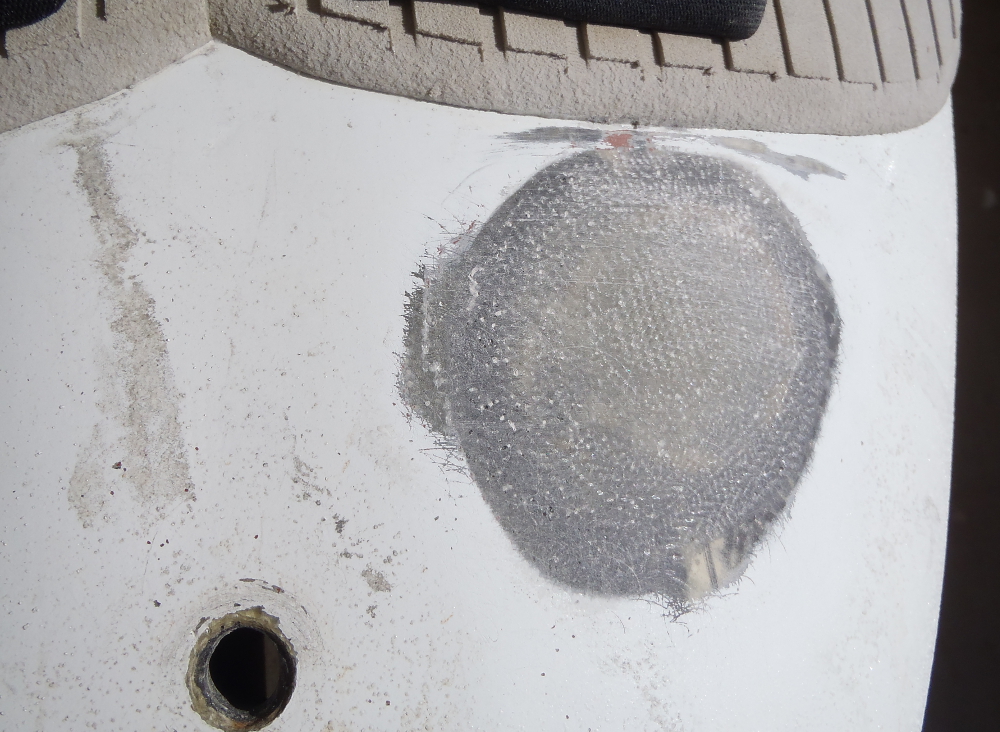

glassed over, then ground flush

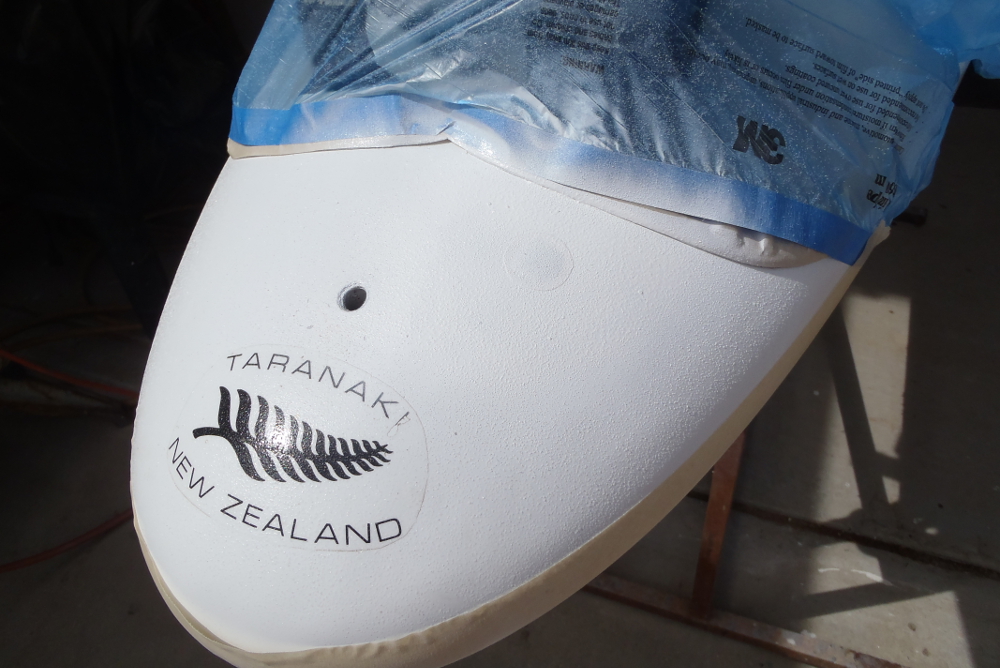

faired, primed, LP topcoat and non-skid DeckDust applied

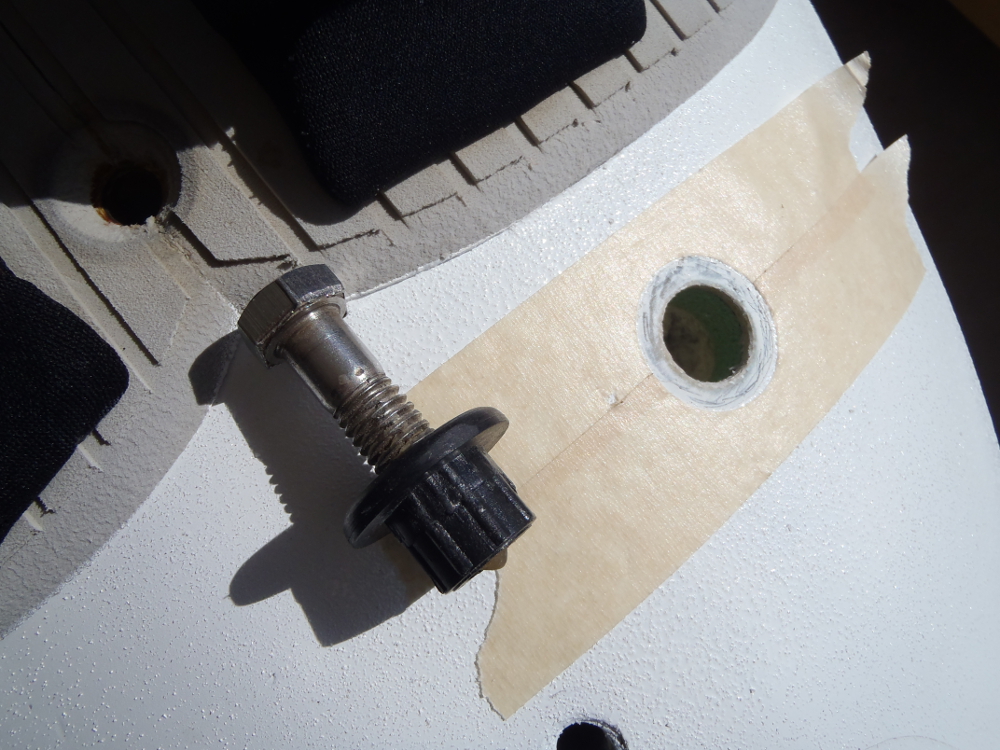

new Chinook manual vent ready to go in

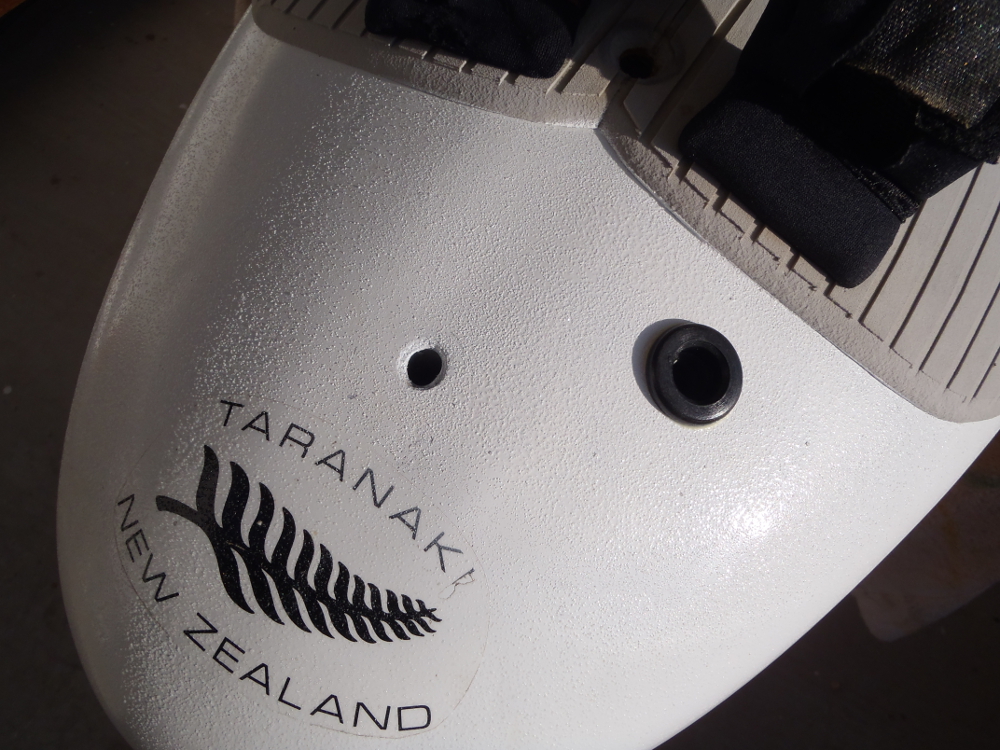

all done!
