Job #5740 Wintech rowing shell

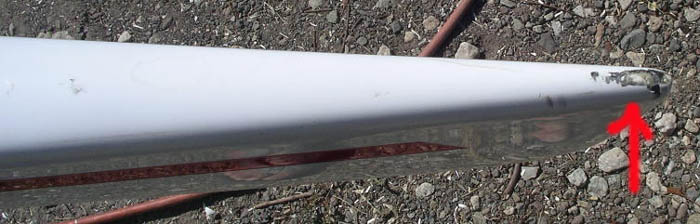

wind blows boat off stands, it turns about halfway and the tail hits the ground hard, with the forward end likely still supported at the moment of impact

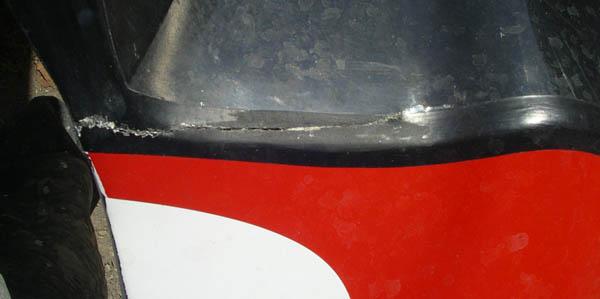

the boat flexes opposite its normal working mode, the joint between aft deck/aft end of cockpit (which is only glued because it does not normally see high stresses) lets go

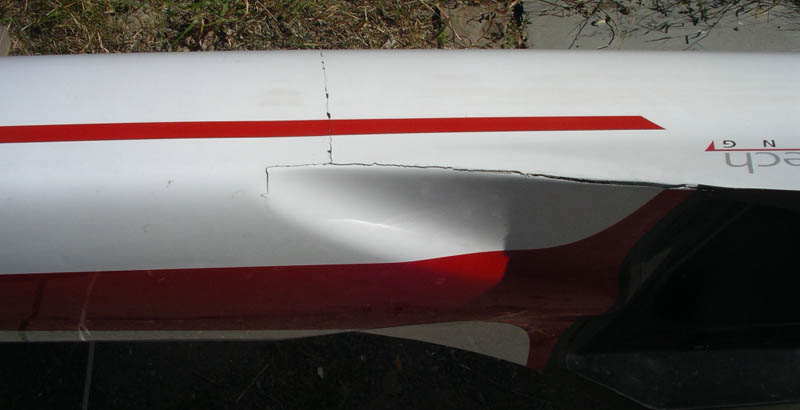

which puts the topsides in compression, unfortunately exactly in way of a step-down in the Carbon laminations, which normally is safely beyond the ends of the cockpit.

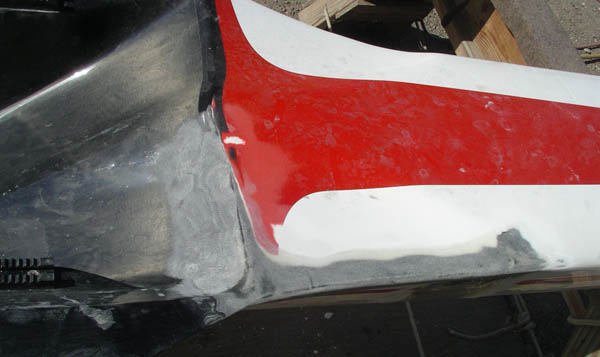

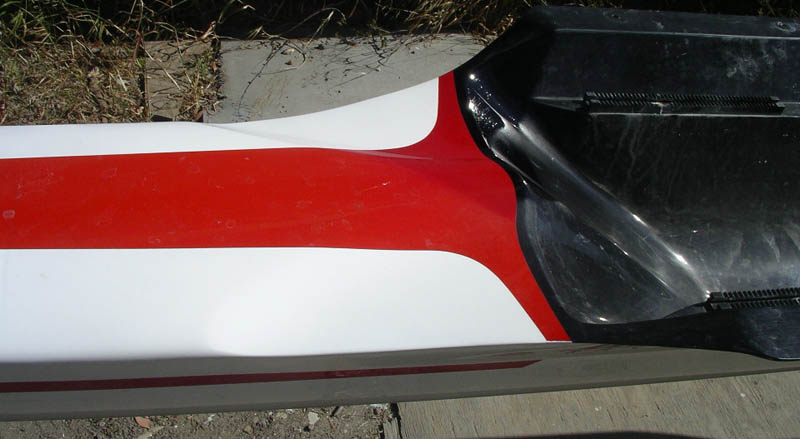

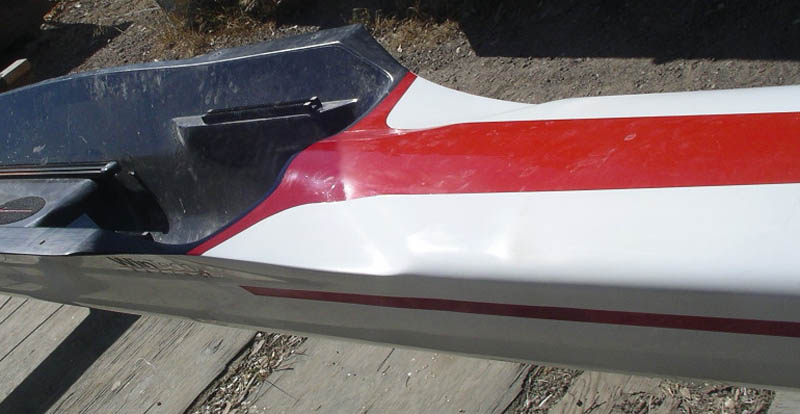

the remedy: weight tail to exactly align the original cockpit/deck joint and thereby exactly restore the rocker; glue all joints; bevel-grind all edges, glass w/ 12oz glass in Epoxy
