![](5867-1.JPG) |

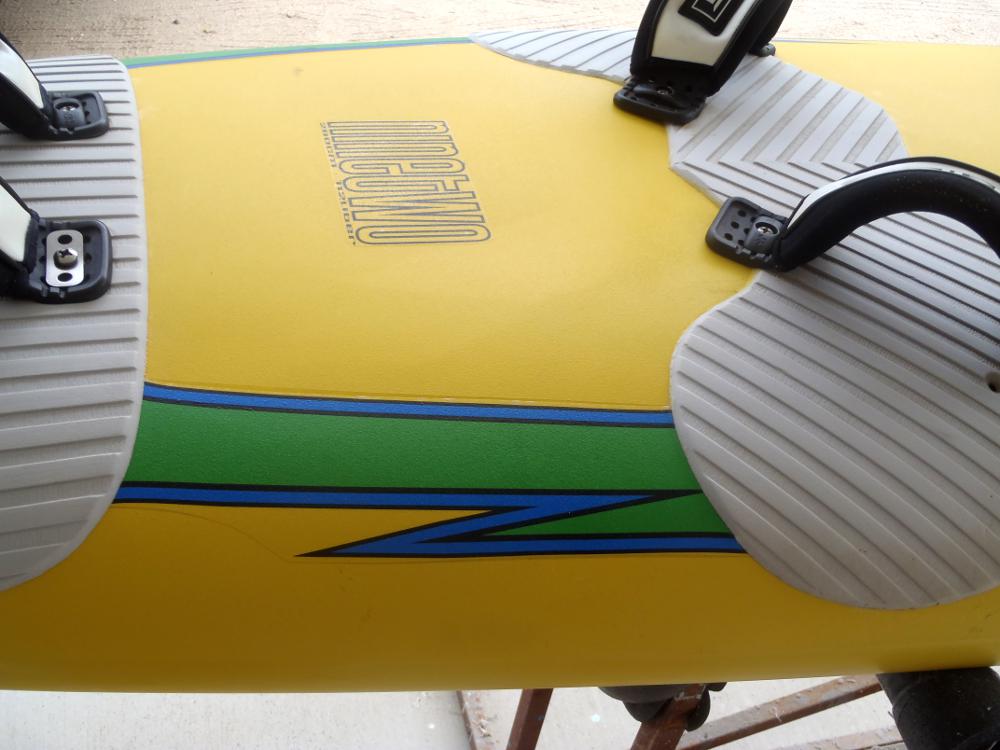

soft deck with creases under stbd jibe
foot |
![](5867-2.JPG) |

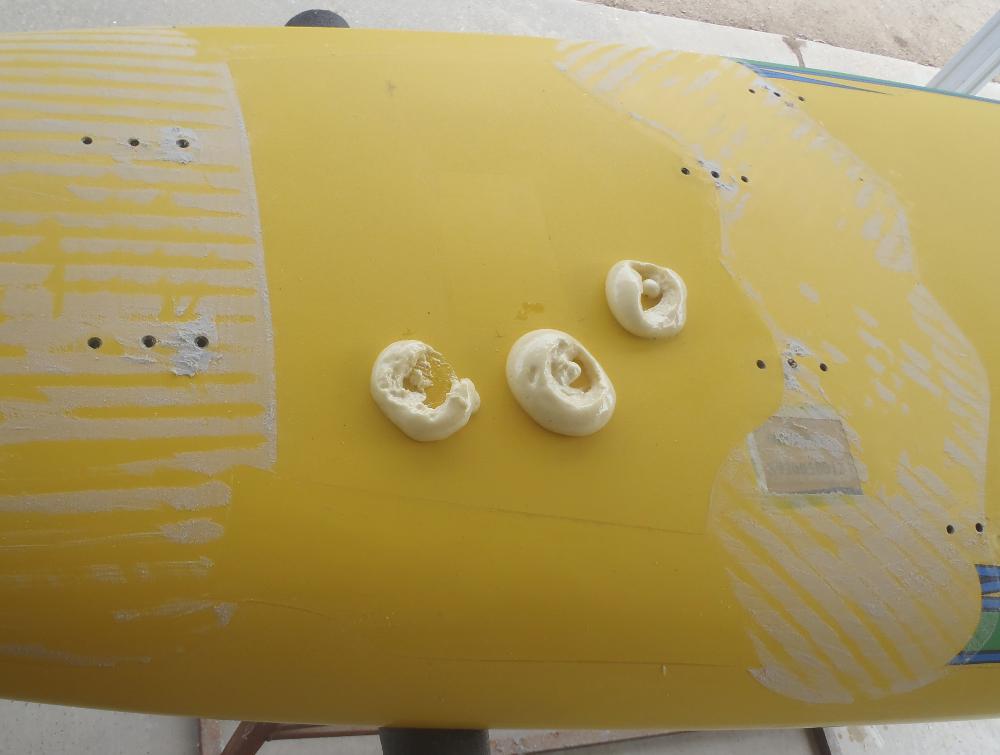

Marine Urethane foam injected into the
soft, depressed areas to
reconstitute core |
![](5867-3.JPG) |

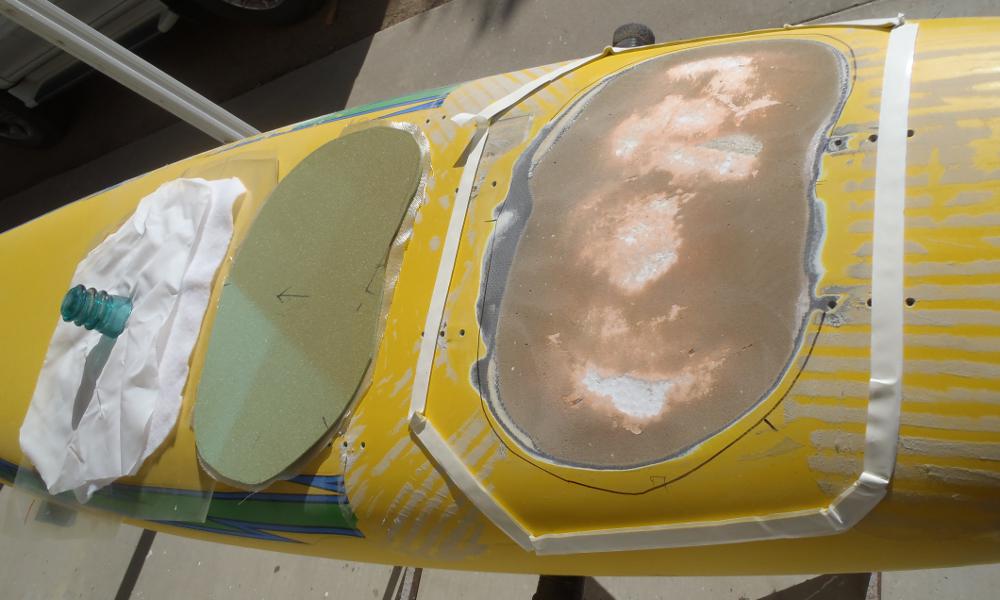

all fractured stuff ground away,
including individual, circular veneer "reinforcements", edges feathered out;
new PVC foam ready to bag |
![](5867-4.JPG) |
glueing it all together with 5psi |
![](5867-5.JPG) |

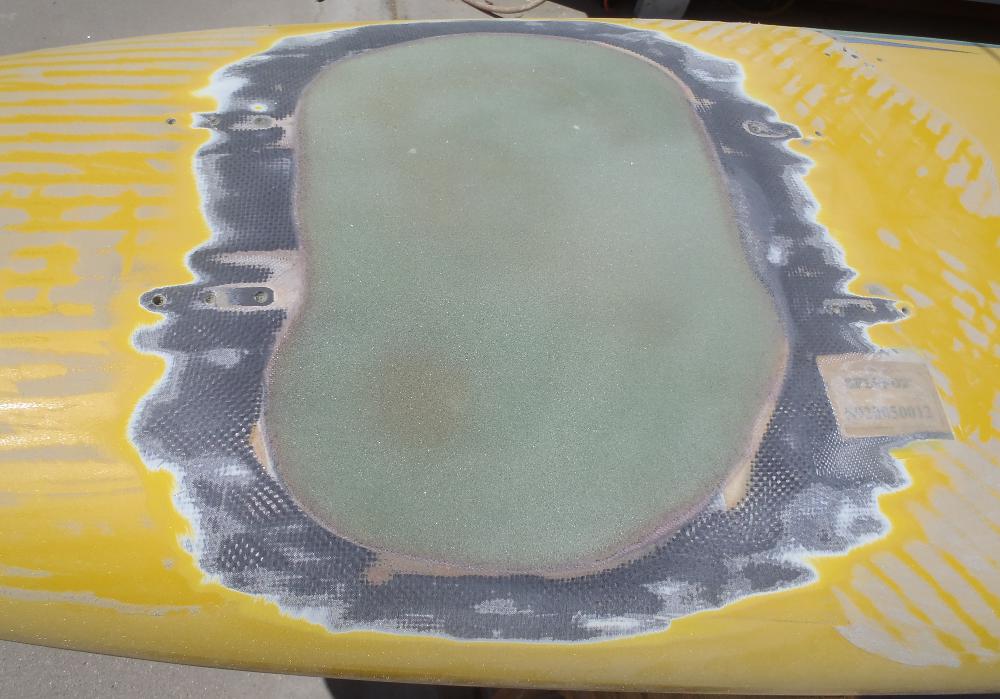

new inner glass & PVC sheet foam faired
out |
![](5867-6.JPG) |

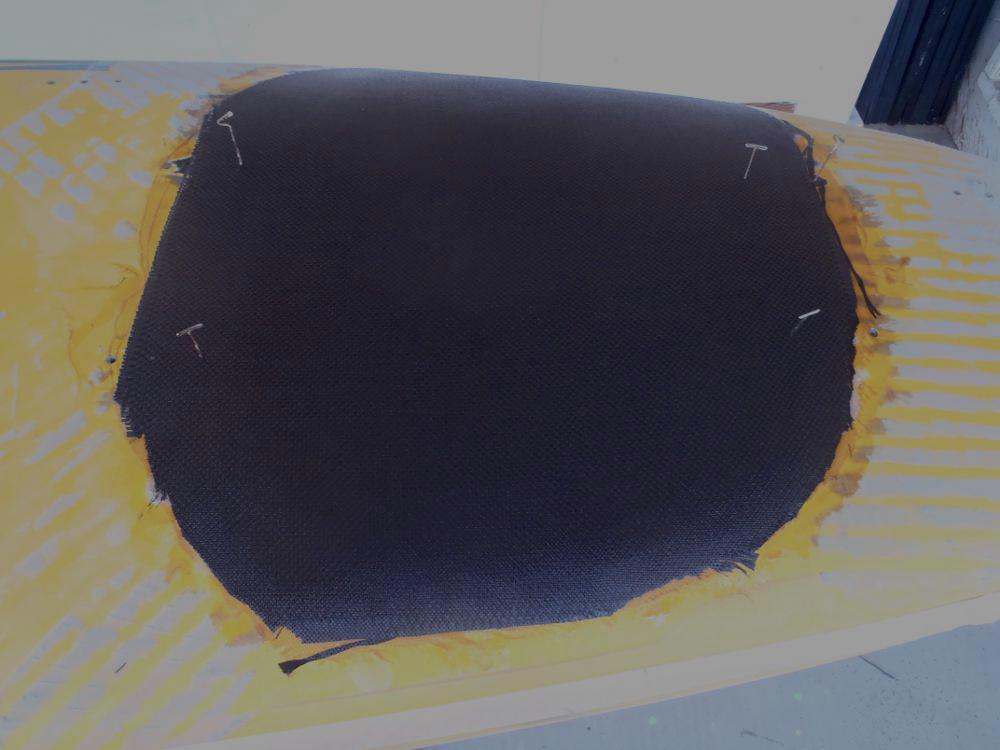

"glassed" over w/ Carbon cloth (pins mark foot strap
insert holes, which are briefly visible when swiping the surface with a
squeegee) |
![](5867-7.JPG) |
faired w/ VC, sanded, primed, and sanded again |
![](5867-9.JPG) |

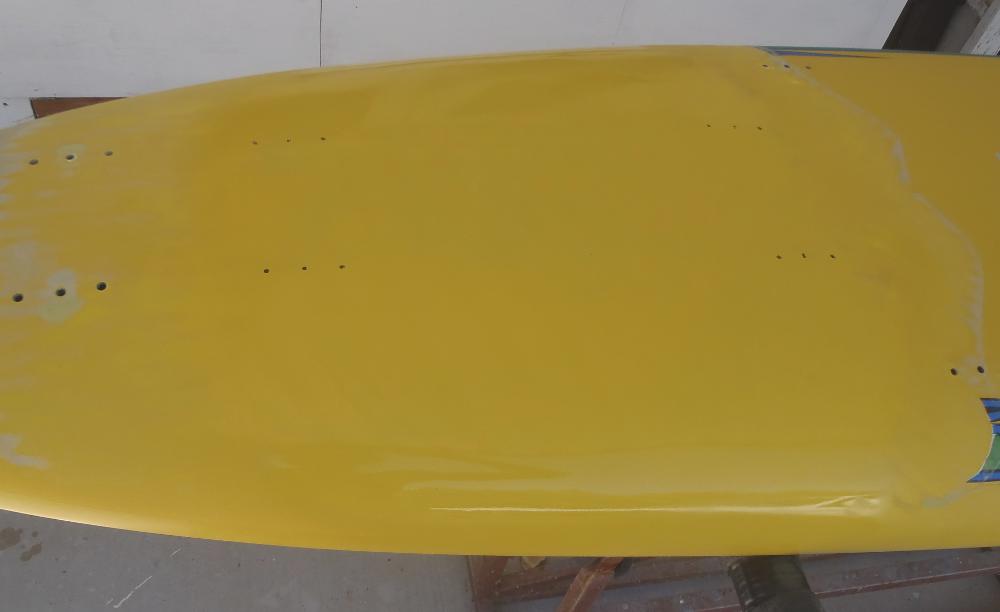

painted w/ LP |
![](5867-10.JPG) |

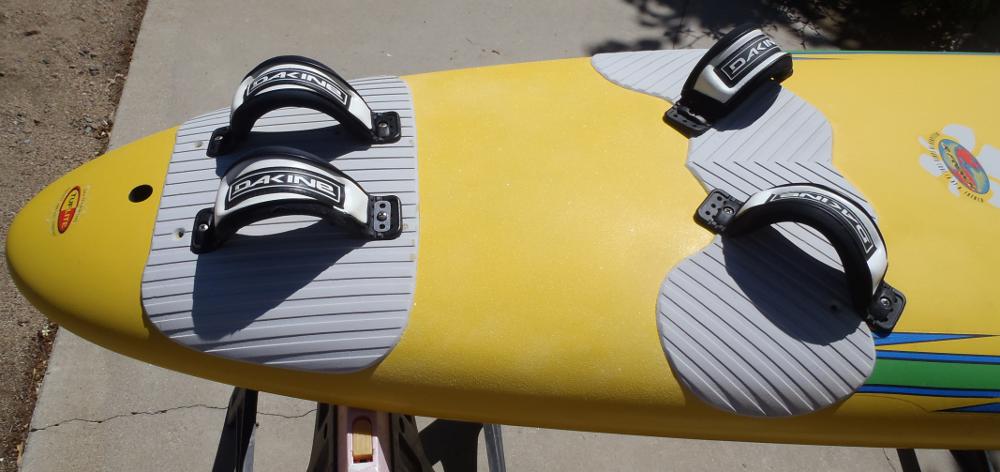

padz re-glued, non-skid touched up, straps re-installed
- ready to roll again! total weight gain 1 1/2oz (the Urethane foam I
injected) |
