Job #5868

Burgashell 1x, fell from overhead rack onto tail, severe buckles just forward and just aft of the cockpit

"travel braces" came off

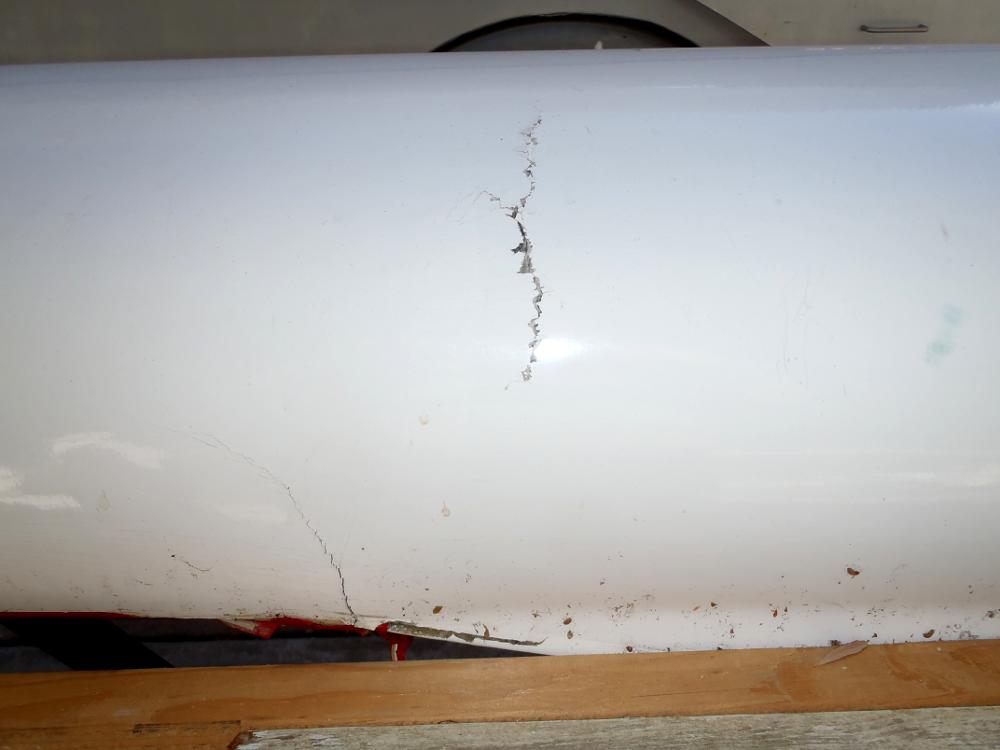

numerous creases in aft hull

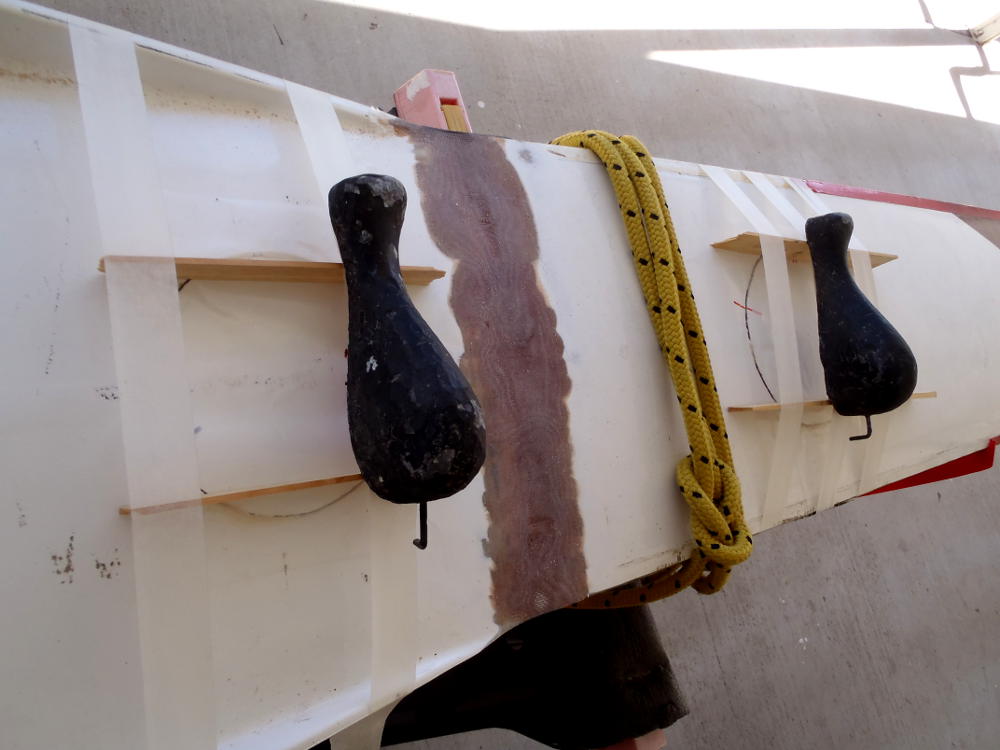

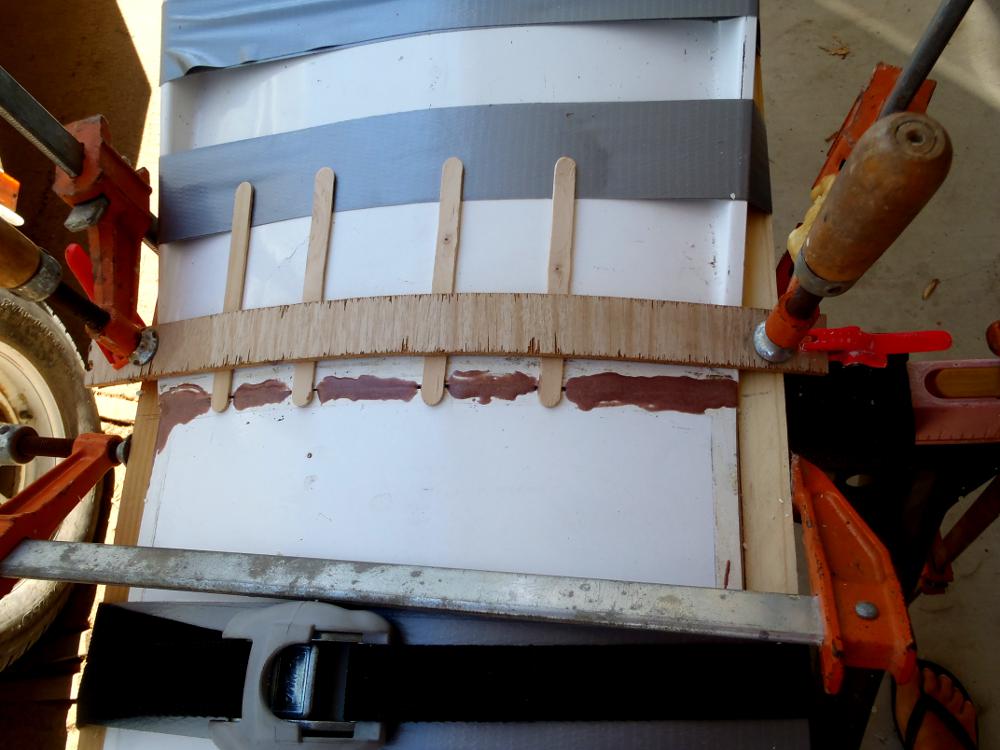

aligned one by one, and taped

cockpit and deck moldings aligned and tacked

cockpit and aft deck joint taped, access port cut into aft deck, loose center web bits removed

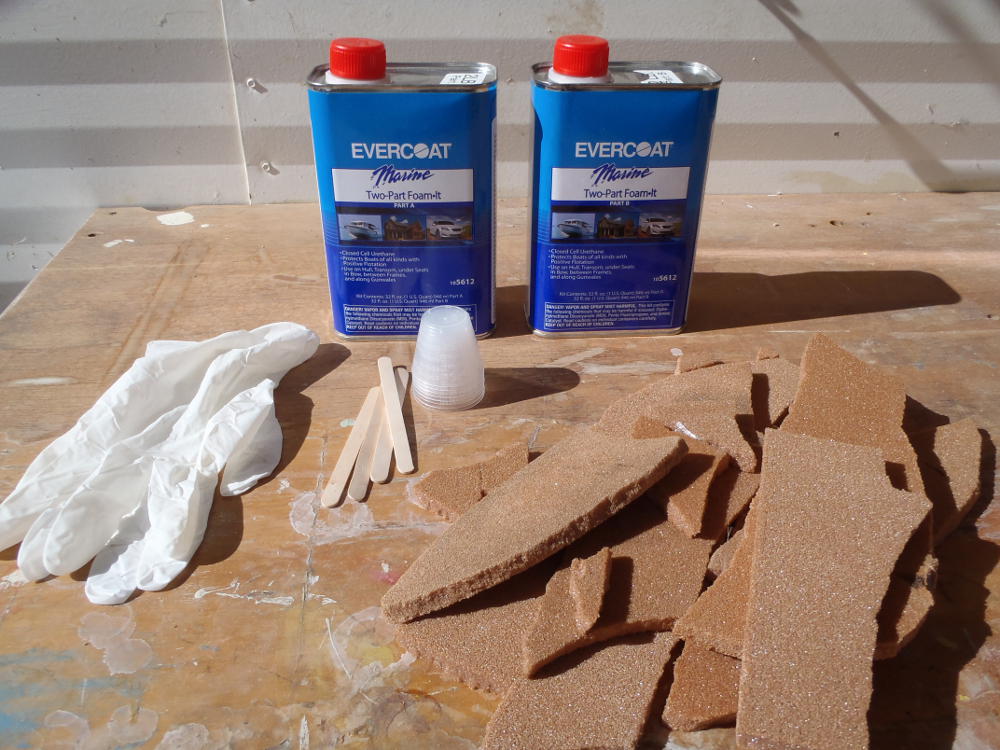

fractured center web bits glued back as much as feasible, rest secured with 2-part Urethane foam

lids glued back on

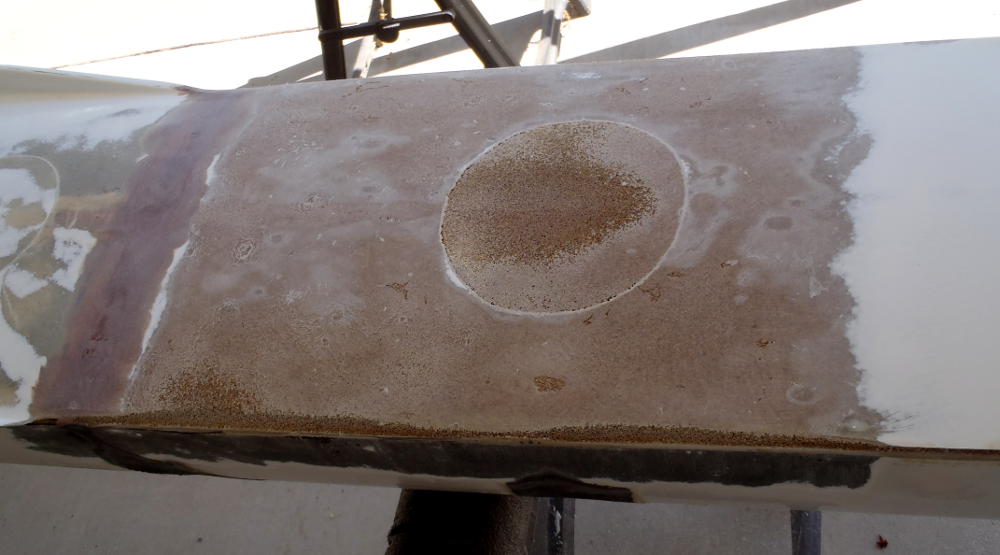

aft deck prepped for new glass
new glass in place on deck
bottom prepped for new laminations
new Carbon and outer fiberglass cloth in place

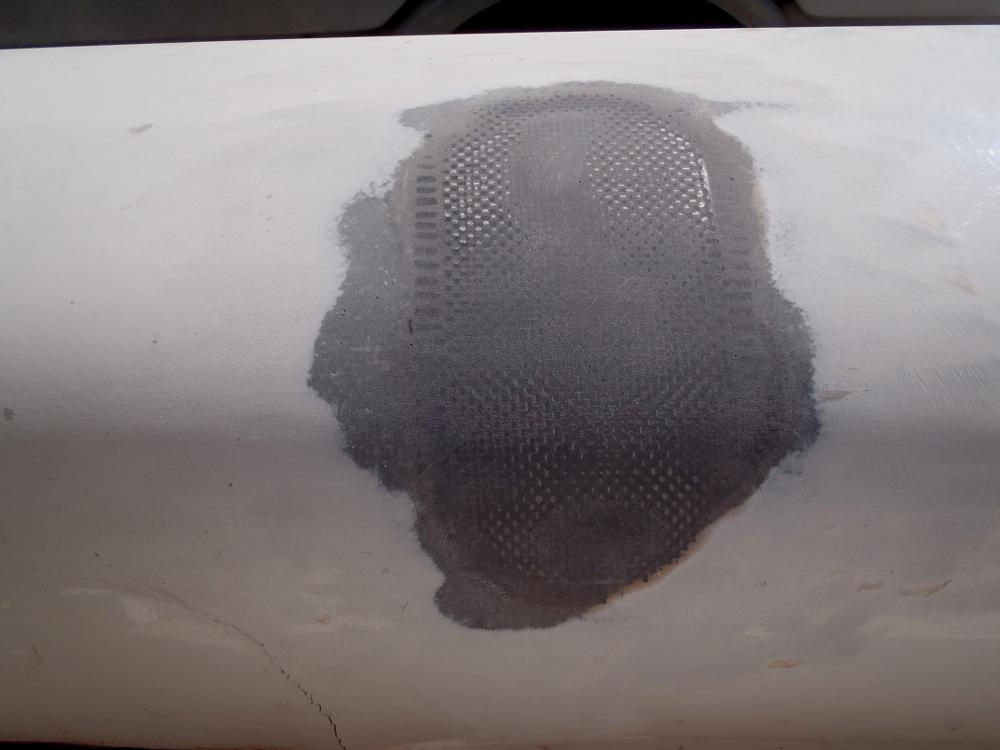

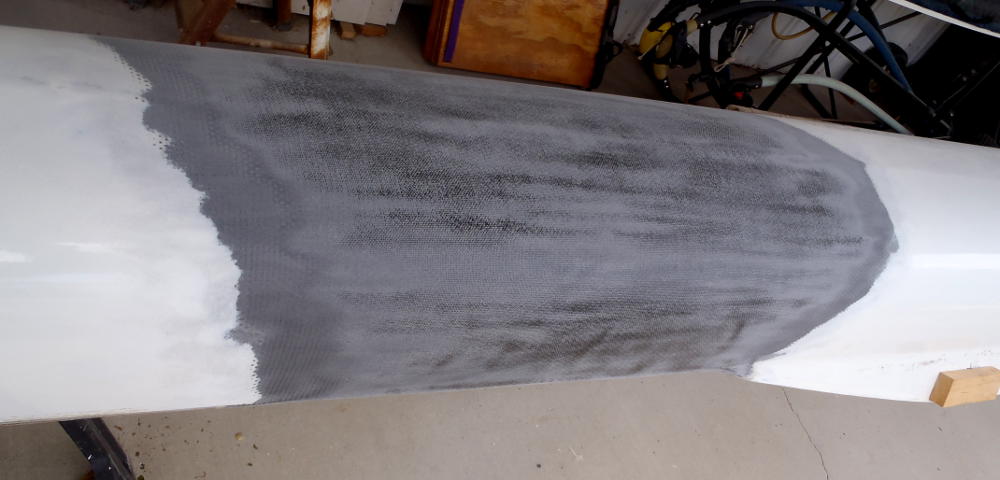

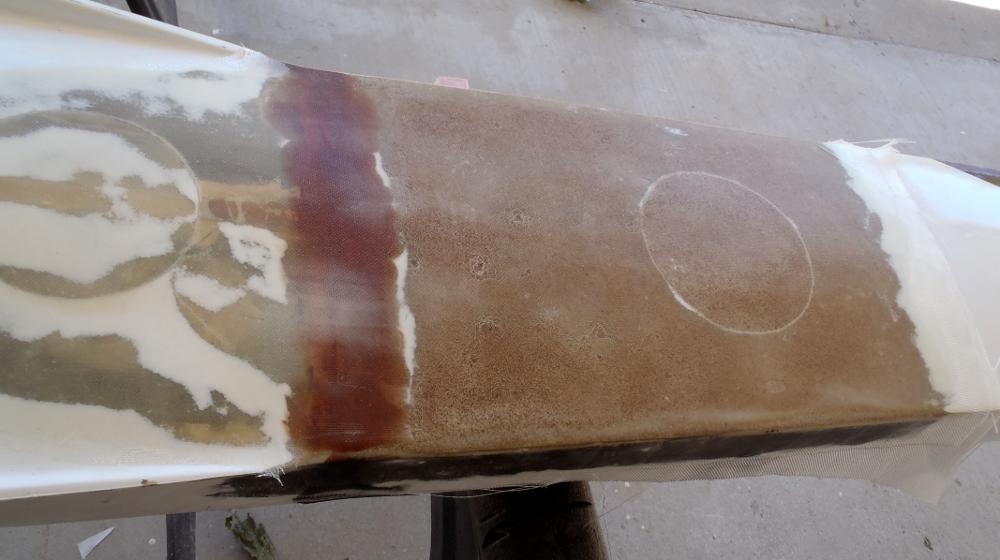

new laminations feathered out

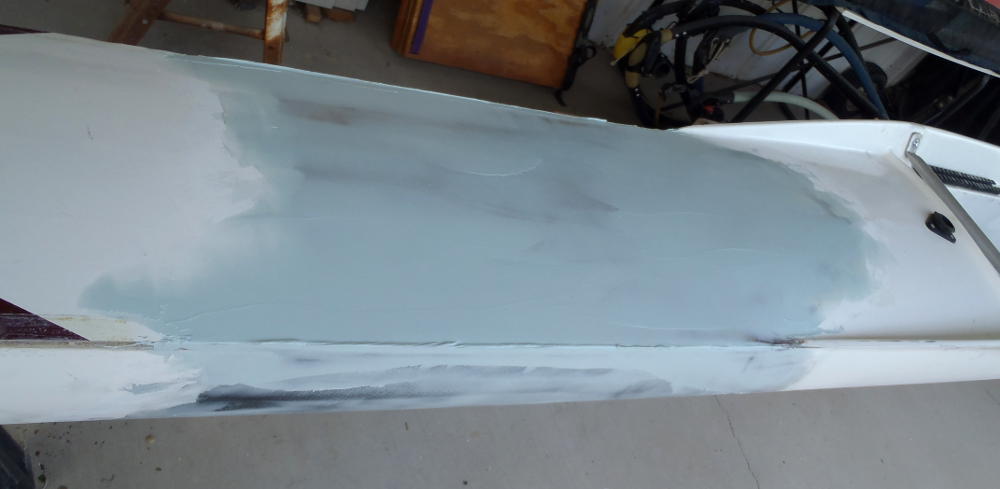

Epoxy fairing compound liberally applied

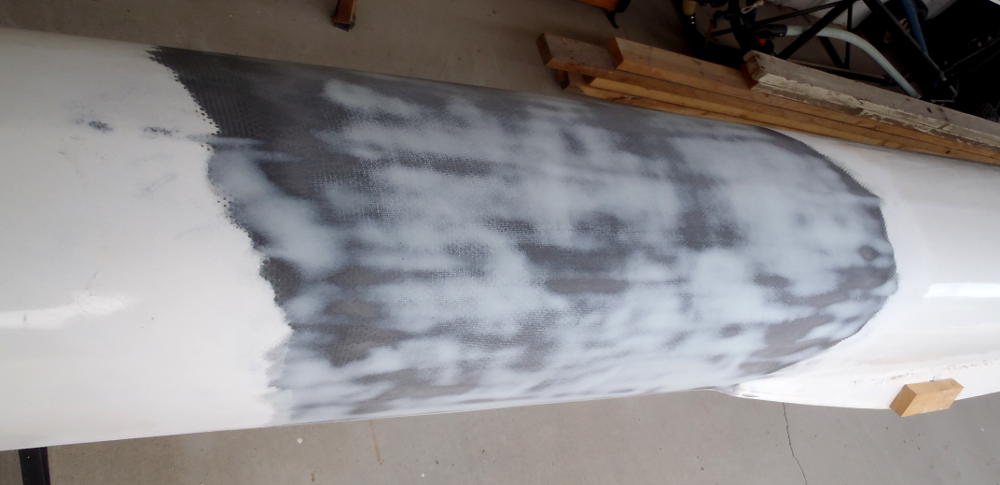

and most of it sanded off again

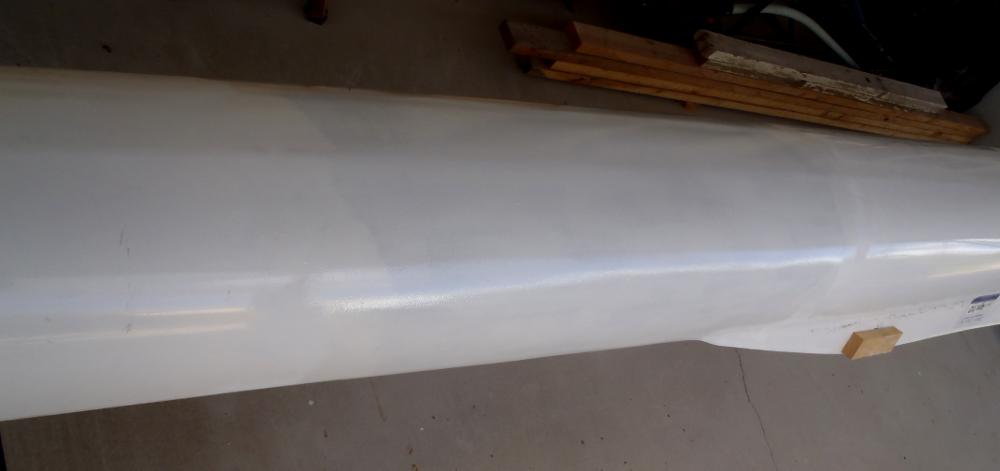

Epoxy primer applied

forward deck buckle

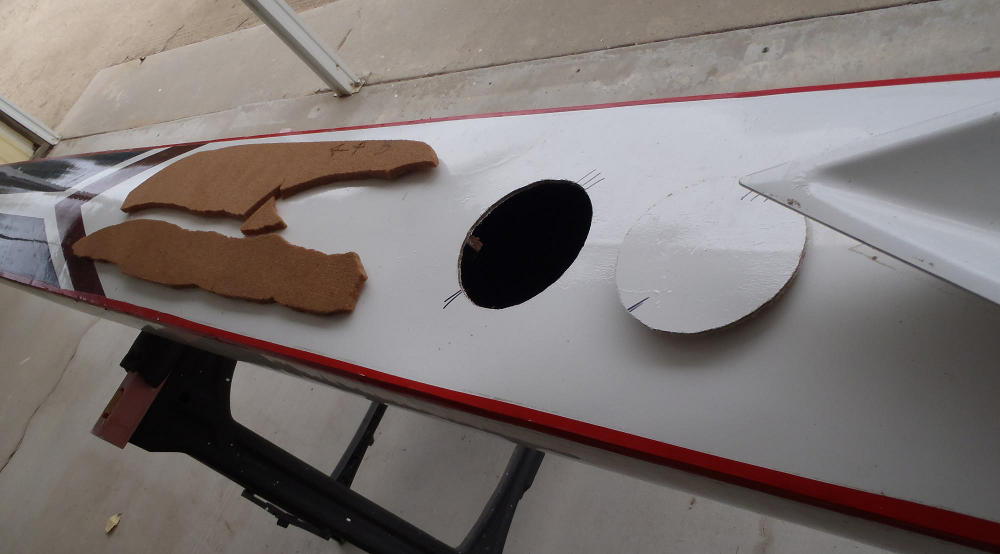

lots of loose center web bits rattling around

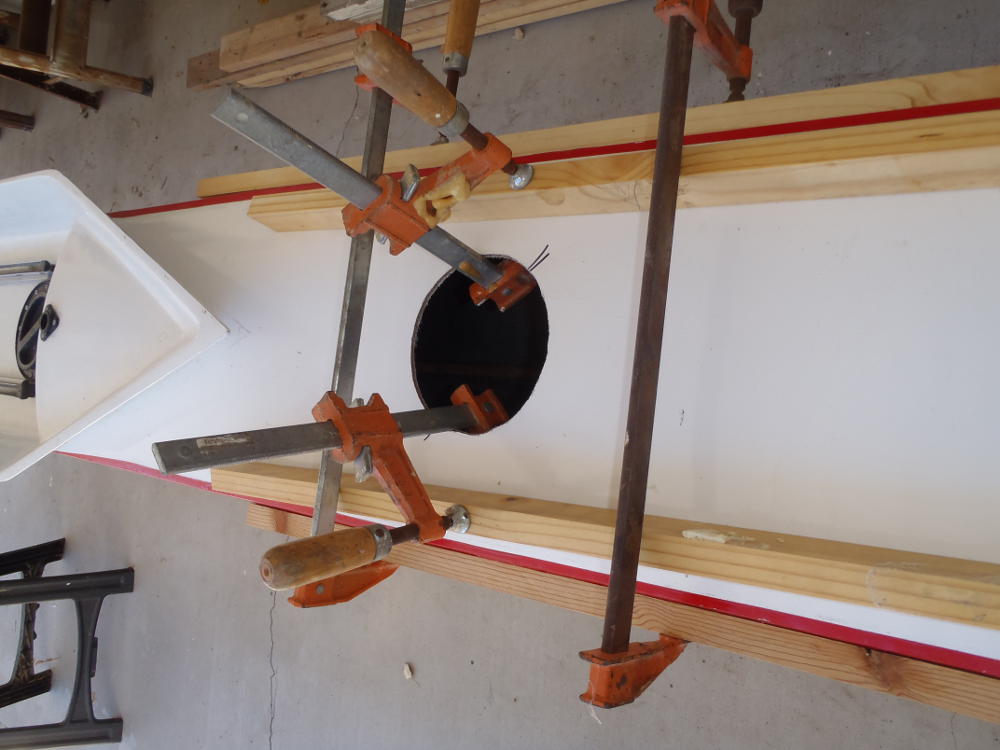

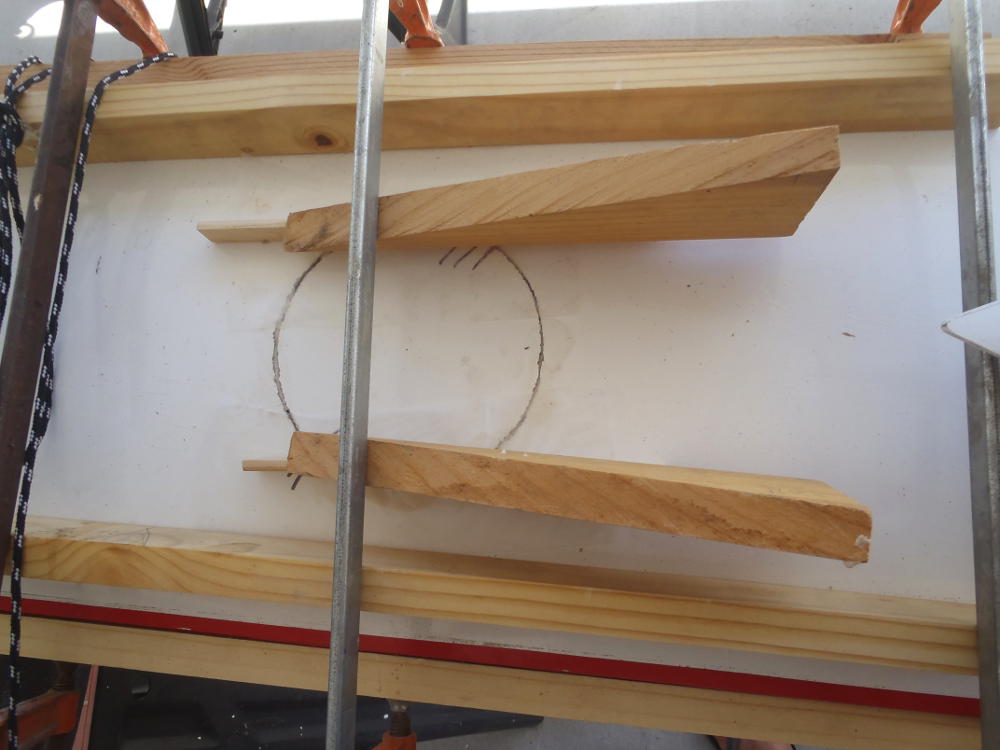

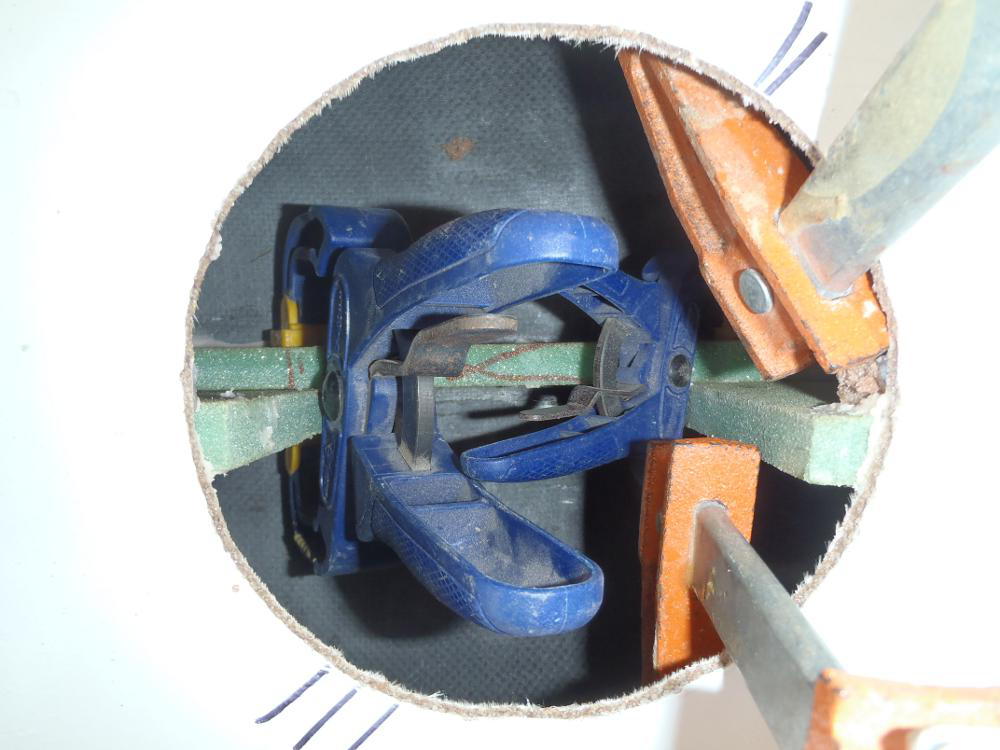

pulling the buckles out of the foredeck

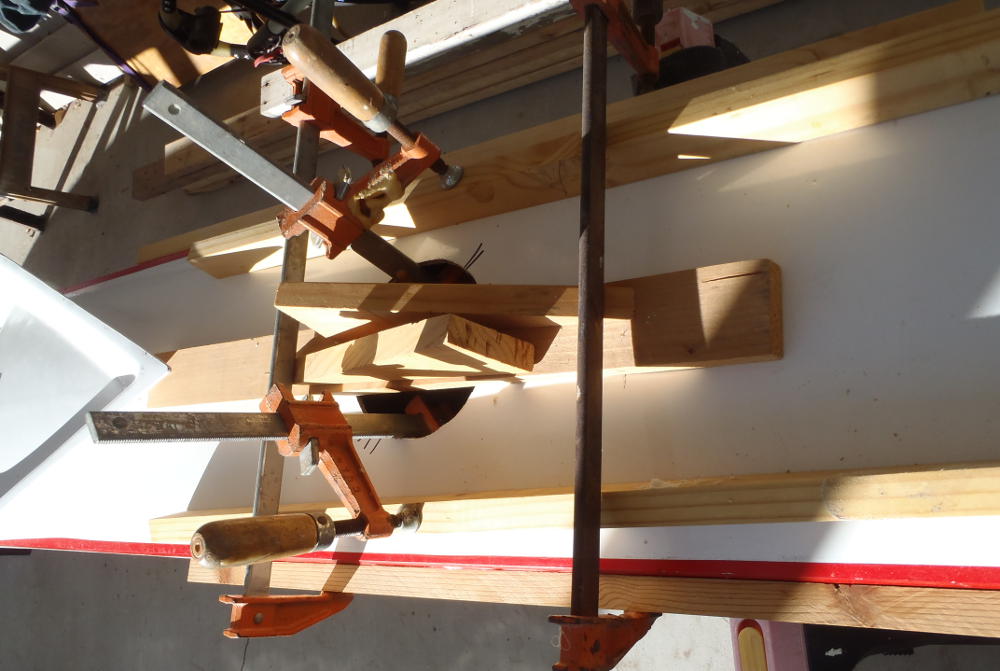

more buckles to pull out - getting crowded in there...
gluing in new PVC foam webs
putting the lid back on

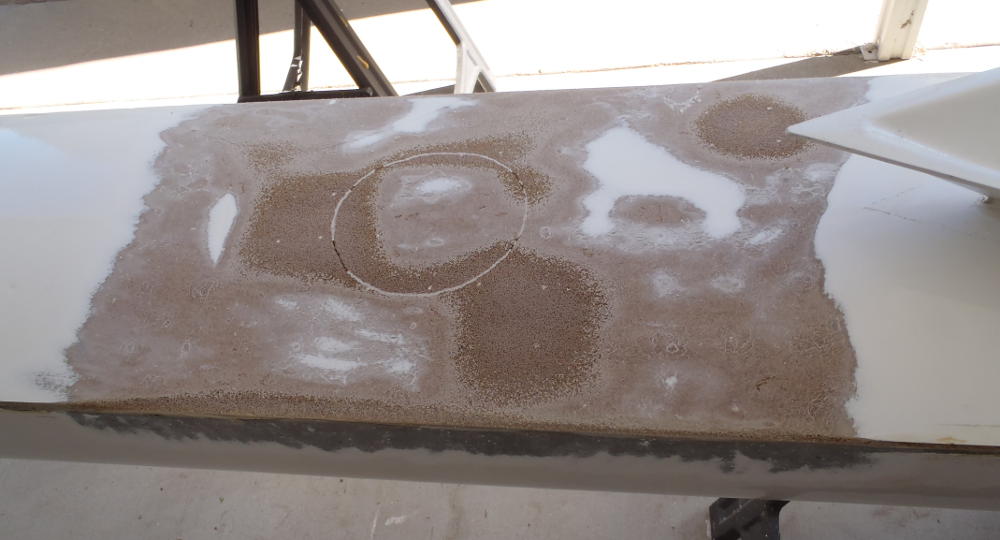

prepped for outer laminations

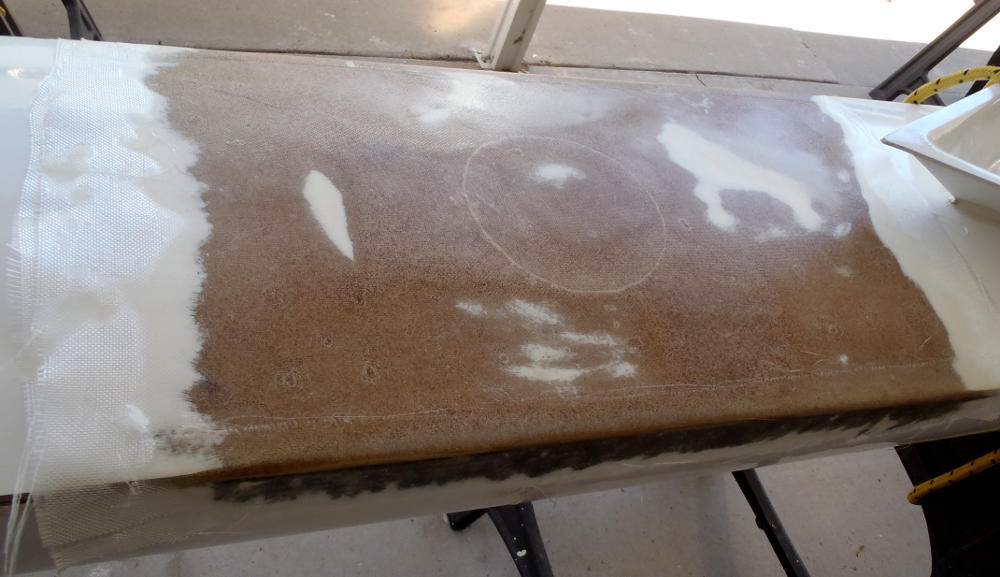

outer glass in place, with extra tabbing over the hull/deck joint

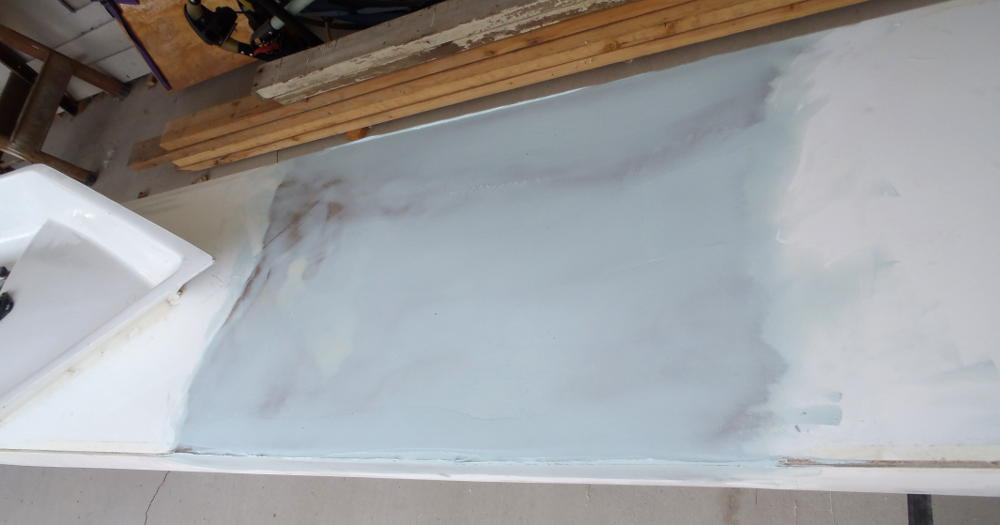

Epoxy fairing compound applied

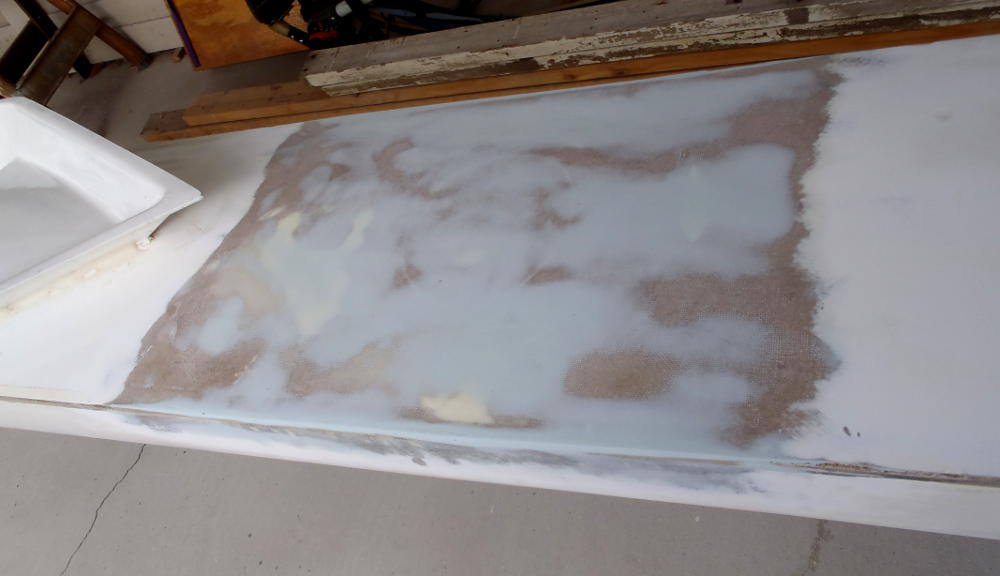

and most of it sanded off again

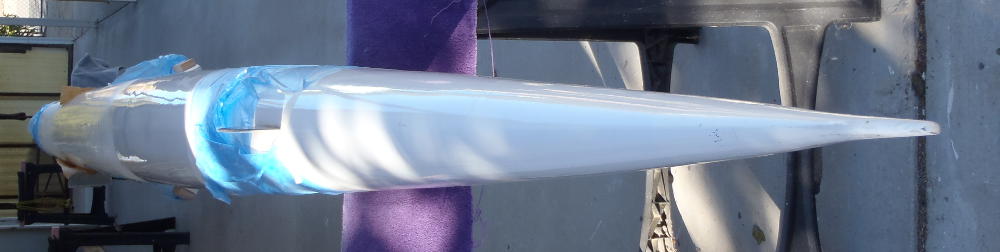

painting day
rubbed out and polished, washed, shear stripe applied. total weight gain 13oz
