![](5882-1.JPG) |

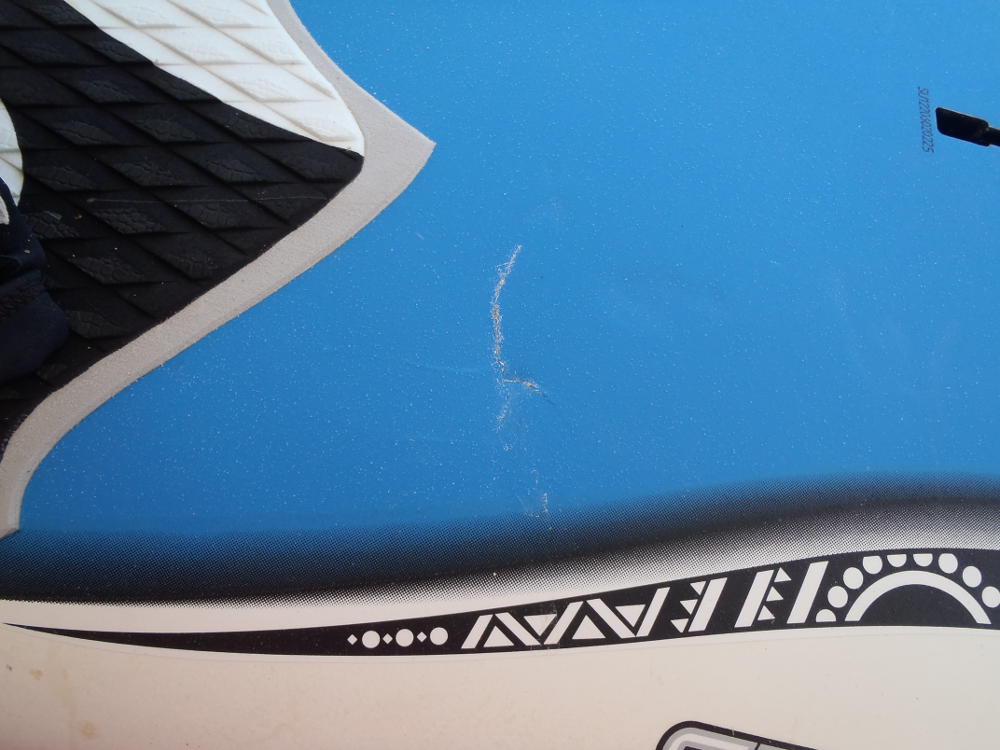

the dreaded harness hook hole |
![](5882-2.JPG) |
paint removed to check the extent |
![](5882-3.JPG) |

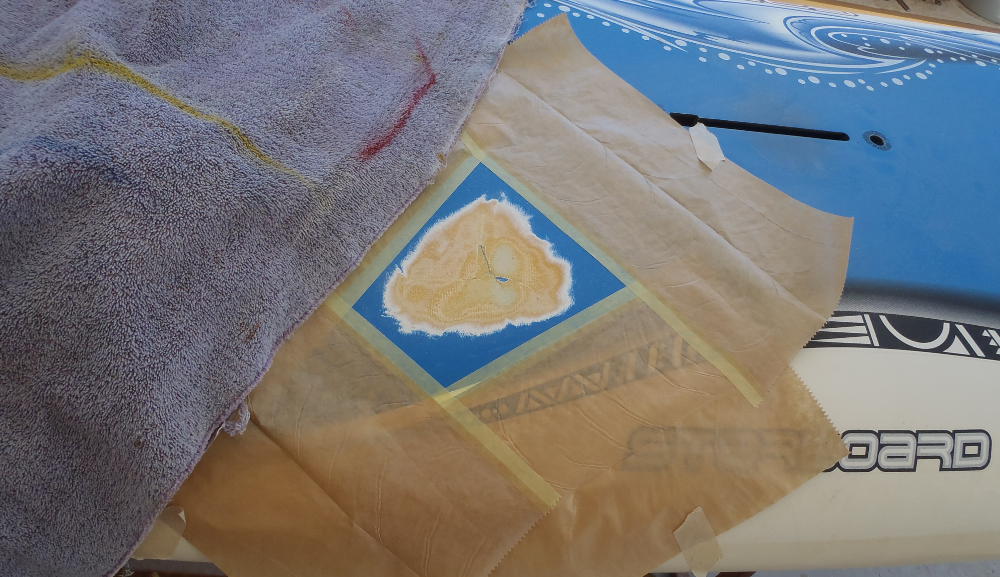

prepped for injection of 2-part Marine
Urethane foam |
![](5882-4.JPG) |

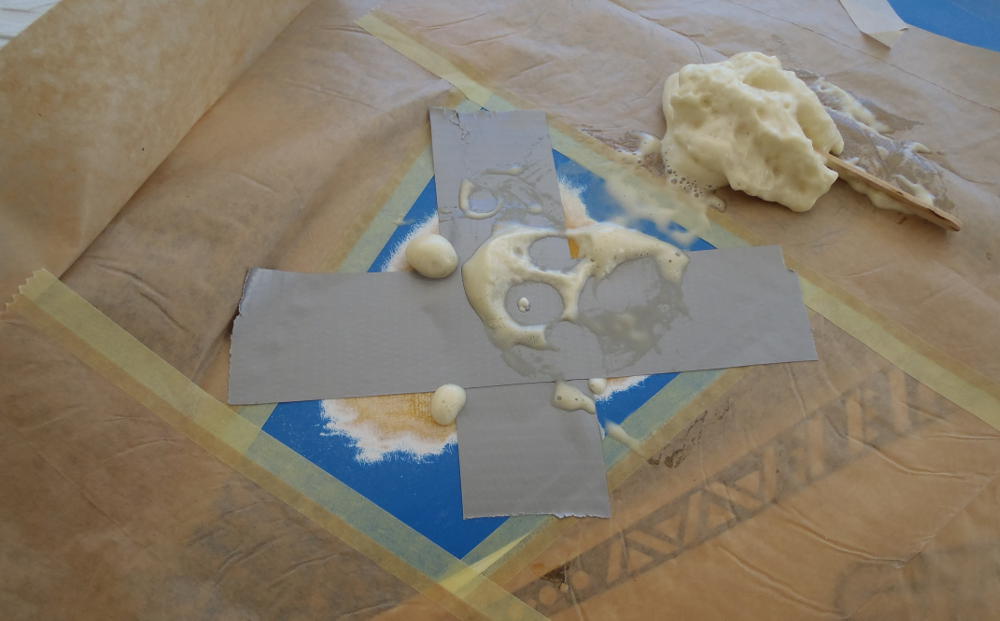

Urethane injected - Duct Tape (mostly)
prevents escape of Urethane foam, so that it is forced down into the
fractured EPS |
![](5882-5.JPG) |

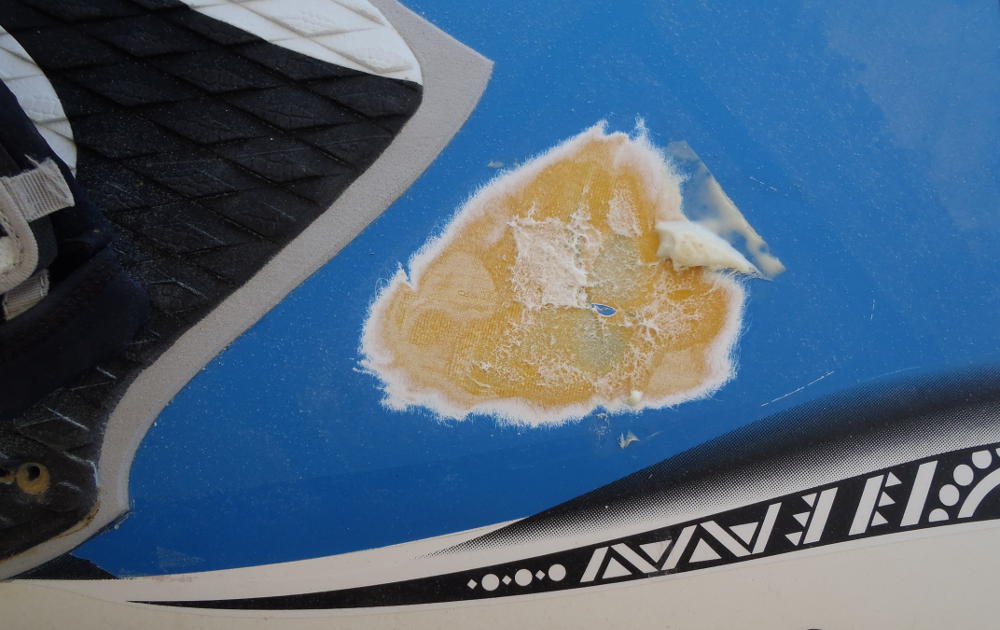

all excesses removed |
![](5882-6.JPG) |

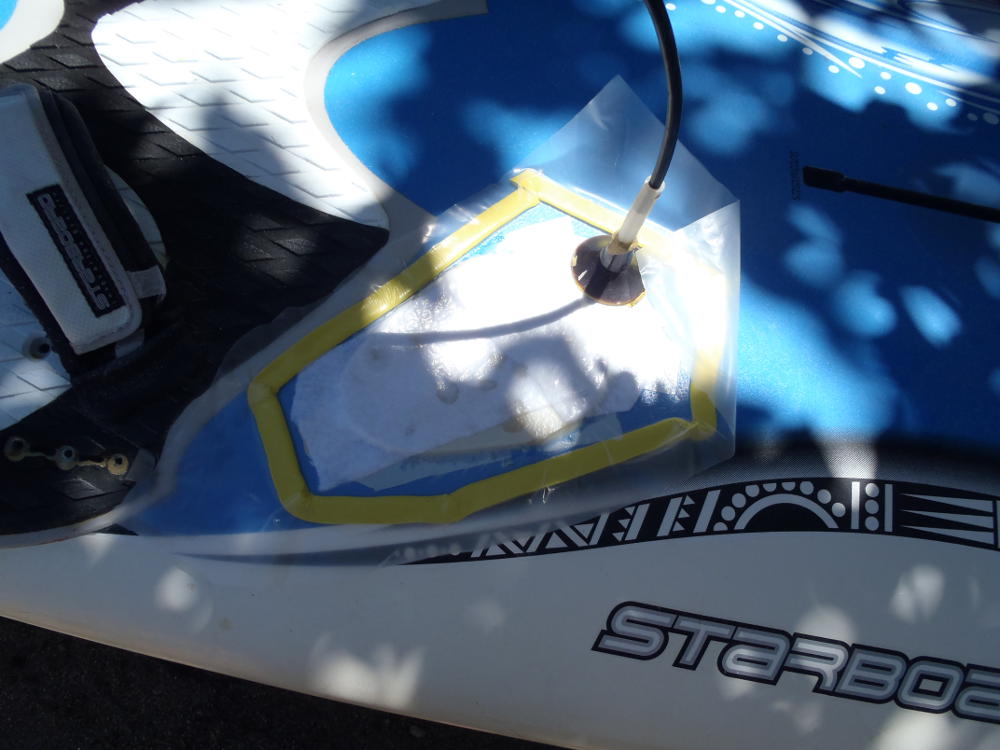

area bevel-ground down to inner glass,
new inner glass & Corecell vacuum-bagged |
![](5882-7.JPG) |

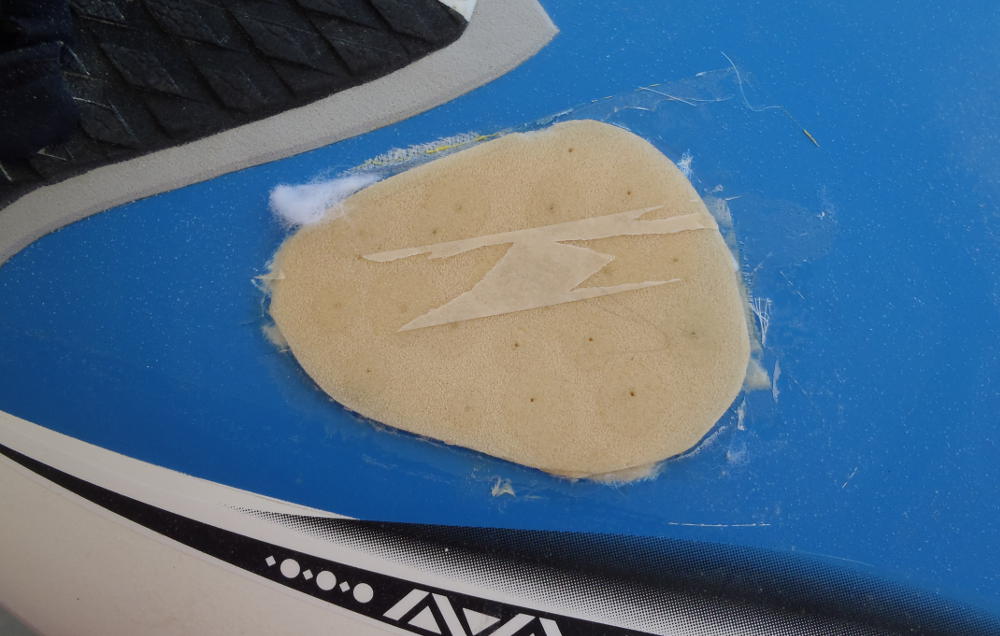

all auxiliary stuff removed |
![](5882-8.JPG) |

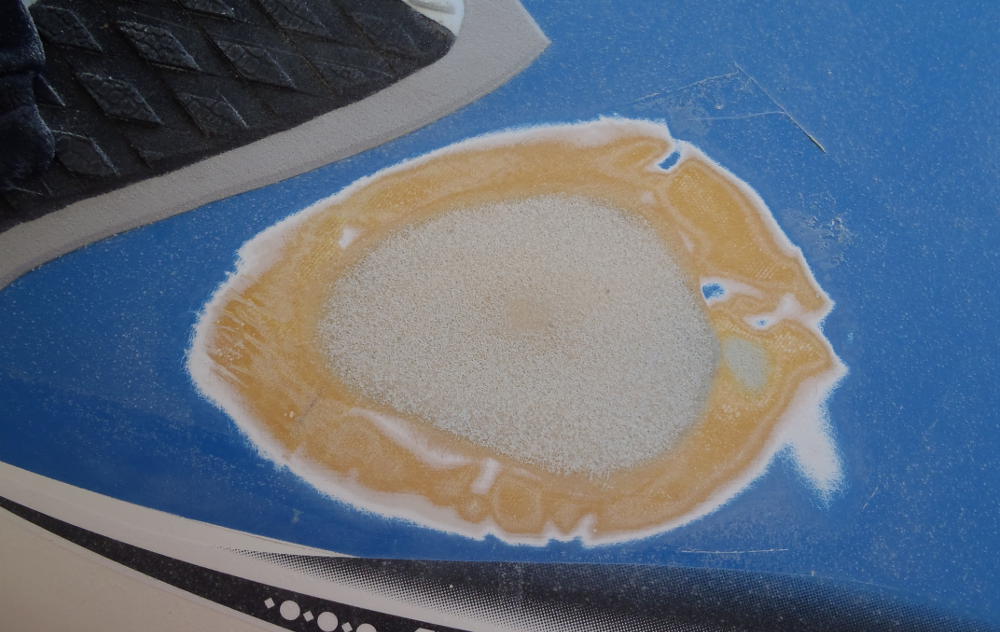

new bit of Corecell faired in |
![](5882-9.JPG) |

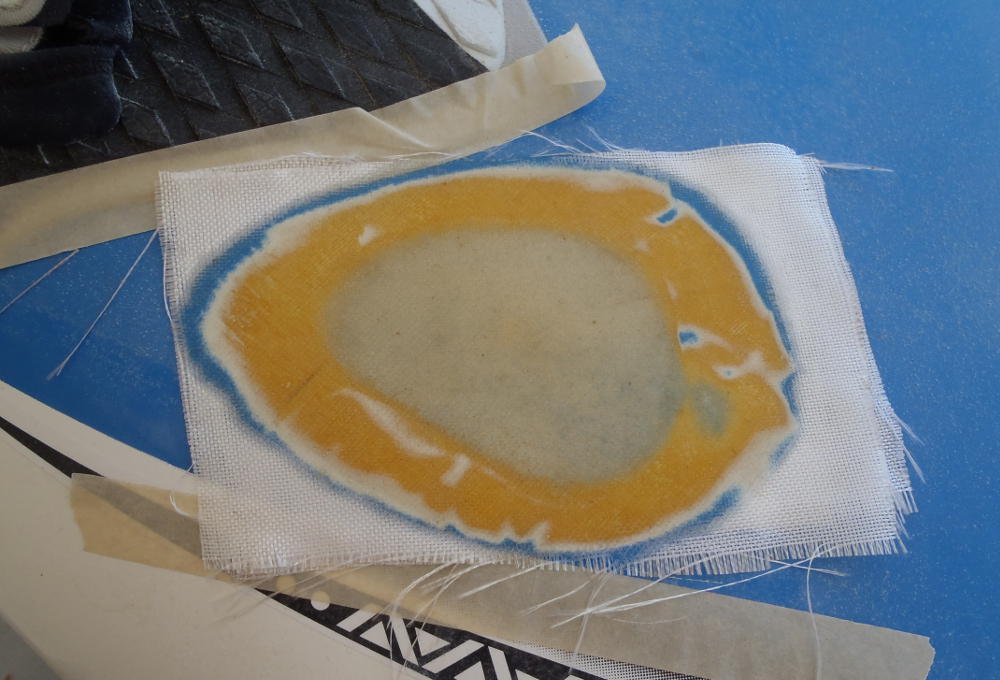

and glassed over |
![](5882-10.JPG) |

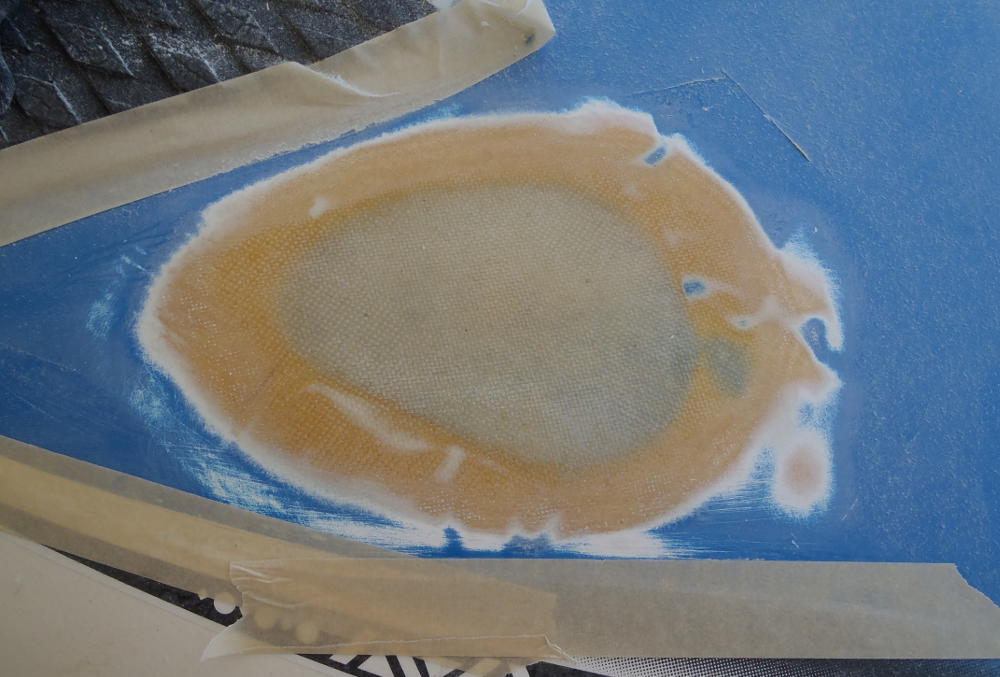

and feathered out |
![](5882-11.JPG) |

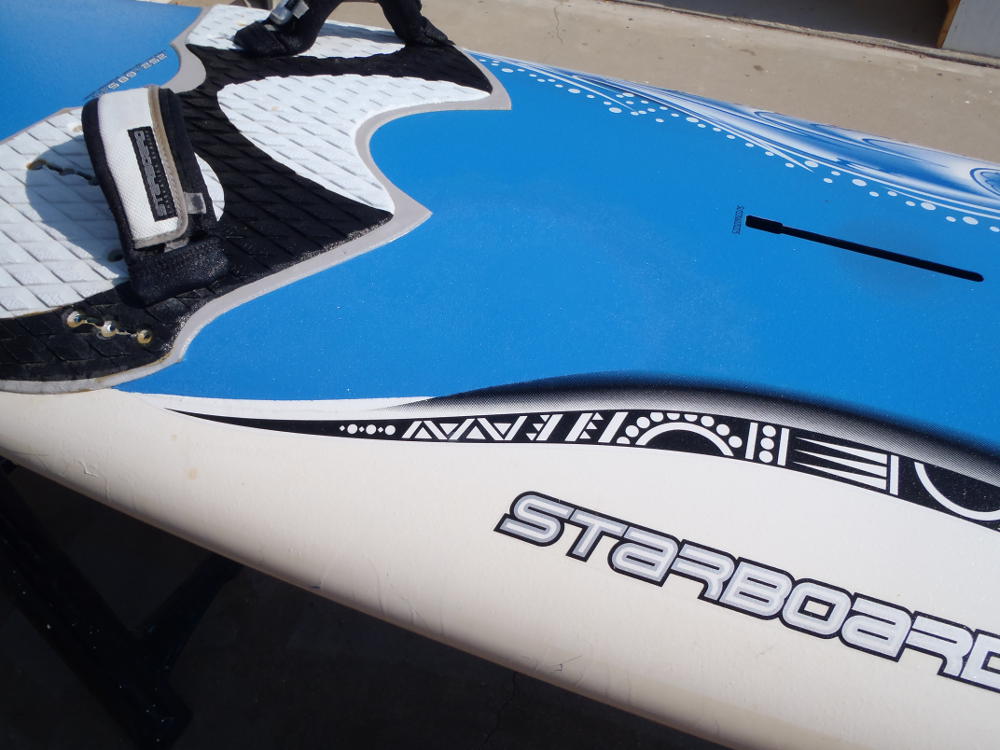

faired, primed, LP applied,
UV-stabilized Epoxy rolled on, with Acrylic deck Dust sprinkled into it |
![](5882-12.JPG) |

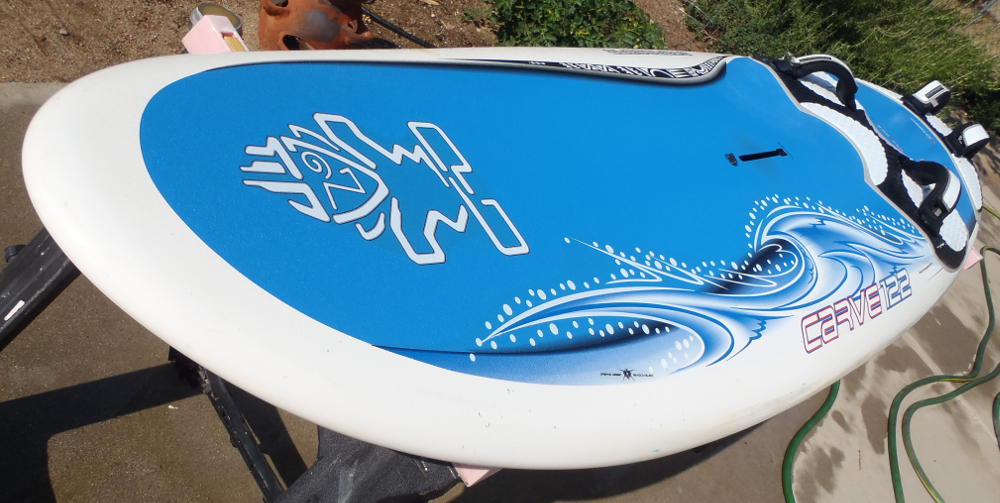

a good scrub-down, all done |
